Front Turn Signal Lamp Bulb — 2016 workshop reference 5770

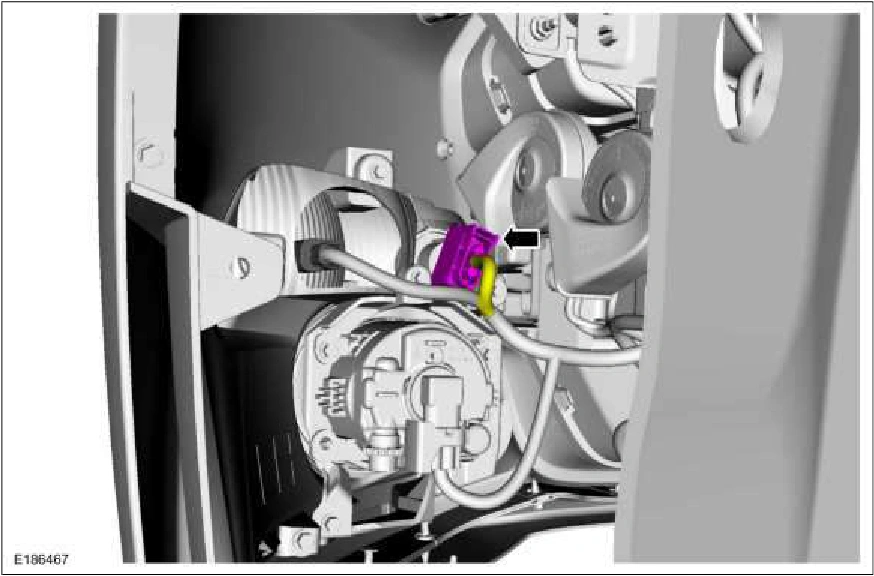

Front Turn Signal Lamp Bulb — original illustration 1, reference 5770Original colors & callouts · Select to enlarge

5. Remove the turn signal bulb.

1. Rotate the turn signal bulb holder counter clock-wise and remove the bulb holder.

2. Separate the turn signal bulb from the bulb holder.

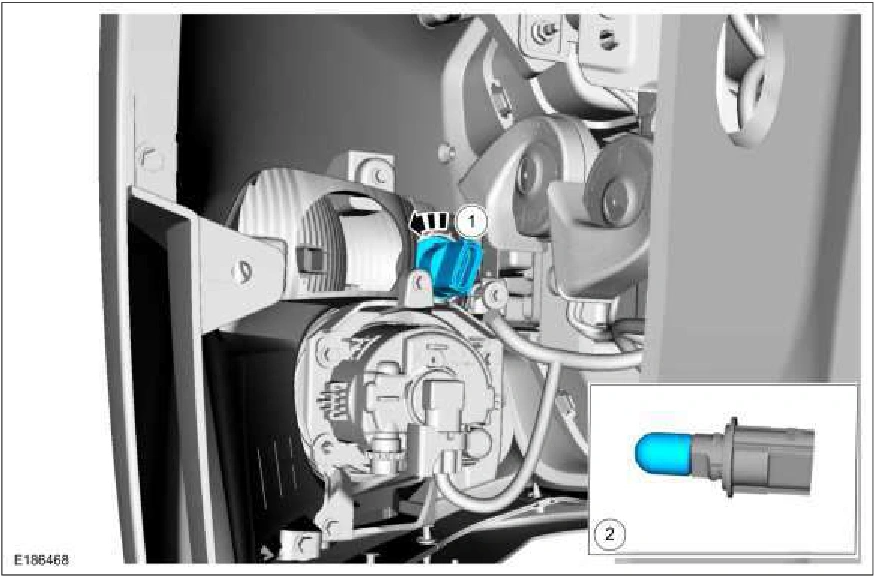

Front Turn Signal Lamp Bulb — original illustration 2, reference 5770Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 5770
