417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Front Turn Signal Lamp Bulb - Vehicles With: SVT Performance Package

Base Part Number: 13466

Removal

NOTE: LH side is shown, RH side is similar.

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Remove the front wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

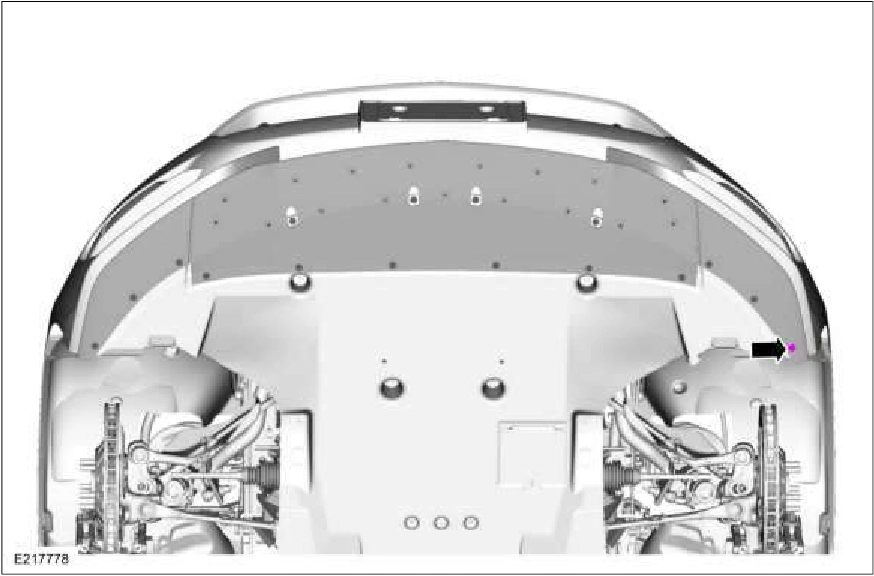

3. Remove the air splitter screw. Torque : 17 lb.in (1.9 Nm)

Front Turn Signal Lamp Bulb - Vehicles With: SVT Performance Package — original illustration 1, reference 5771Original colors & callouts · Select to enlarge

4. NOTE: On both sides.

Remove the push pins.
