Parking Lamp Bulb — 2016 workshop reference 5790

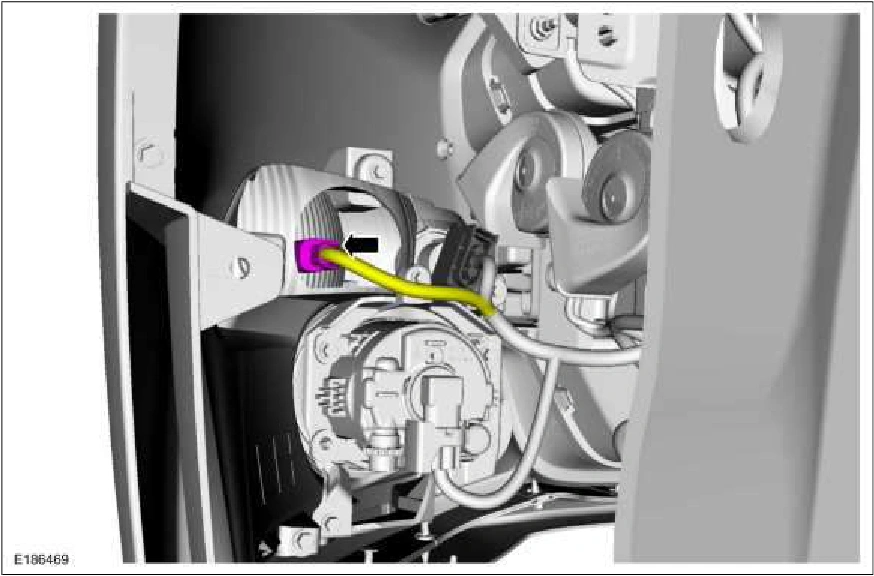

Parking Lamp Bulb — original illustration 1, reference 5790Original colors & callouts · Select to enlarge

5. Remove the front parking lamp bulb.

1. Rotate the front parking lamp bulb holder counter clock-wise and remove the bulb holder.

2. Separate the front parking lamp bulb from the bulb holder.

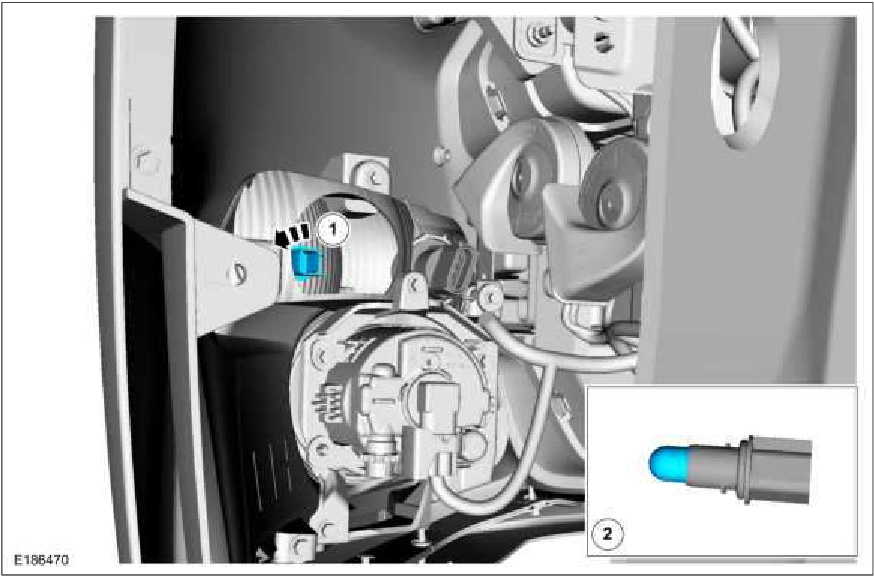

Parking Lamp Bulb — original illustration 2, reference 5790Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 5790
