Light Sensor

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Removal

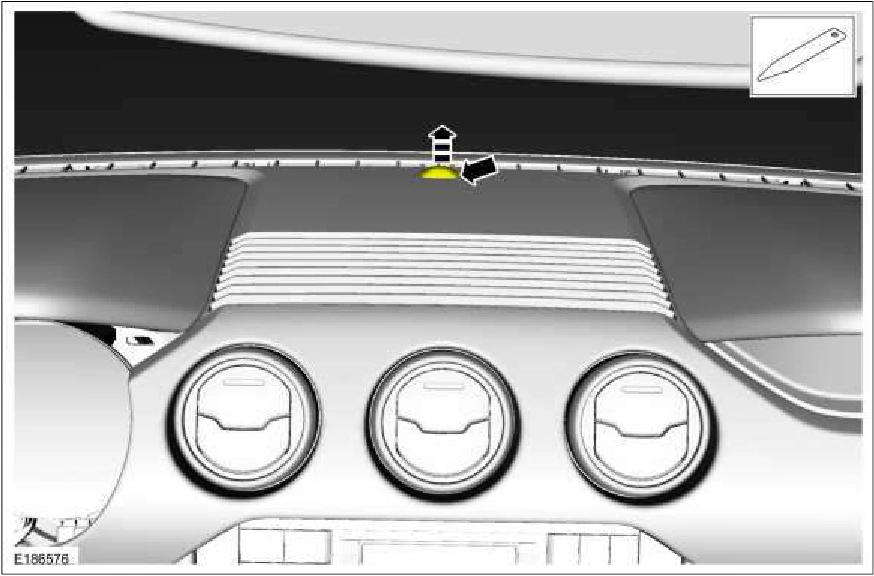

1. Using a non-marring tool, release the light sensor and position upward.

Light Sensor — original illustration 1, reference 5787Original colors & callouts · Select to enlarge

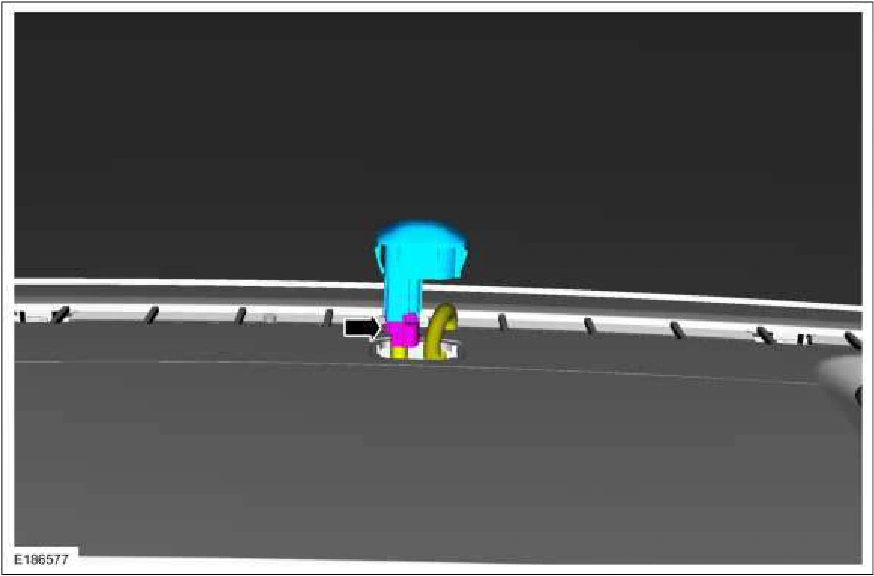

2. Disconnect the electrical connector and remove the light sensor.

Light Sensor — original illustration 2, reference 5787Original colors & callouts · Select to enlarge

Source reference 5787
