417-02 Interior Lighting 2016 Mustang

Description and Operation Procedure revision date: 08/20/2014

Interior Lighting - System Operation and Component Description

System Operation

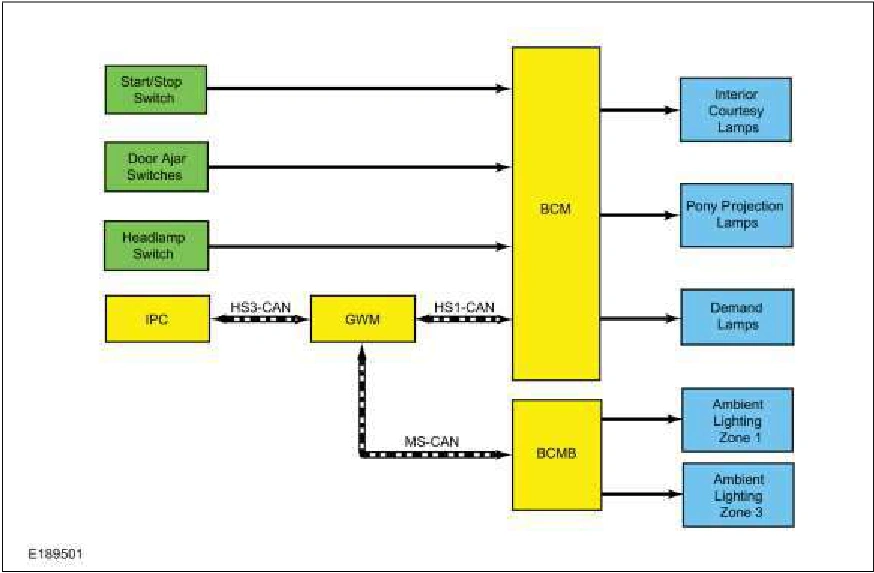

System Diagram

Network Message Chart

GWM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Ambient light color/intensity request	IPC	Indicates the color and brightness setting selected from the display interface. This commands the ambient color and brightness setting as requested by the operator.
Headlamp switch status	BCM	Indicates the headlamp switch position to enable or disable the ambient lighting.
Illuminated entry status	BCM	Indicates the status of the illuminated entry lighting to enable or disable the ambient lighting.

Body Control Module (BCMB) Network Input Messages

Broadcast Message	Originating Module	Message Purpose

Ambient light GWM Indicates the color and brightness setting selected from the display color/intensity request interface. This commands the ambient color and brightness setting as
