Passive Anti-Theft System (PATS) Front Antenna

419-01B Passive Anti-Theft System-PATS

2016 MustangReference 6,031 / 6,619HTML edition

← Chapter contents Procedure contents

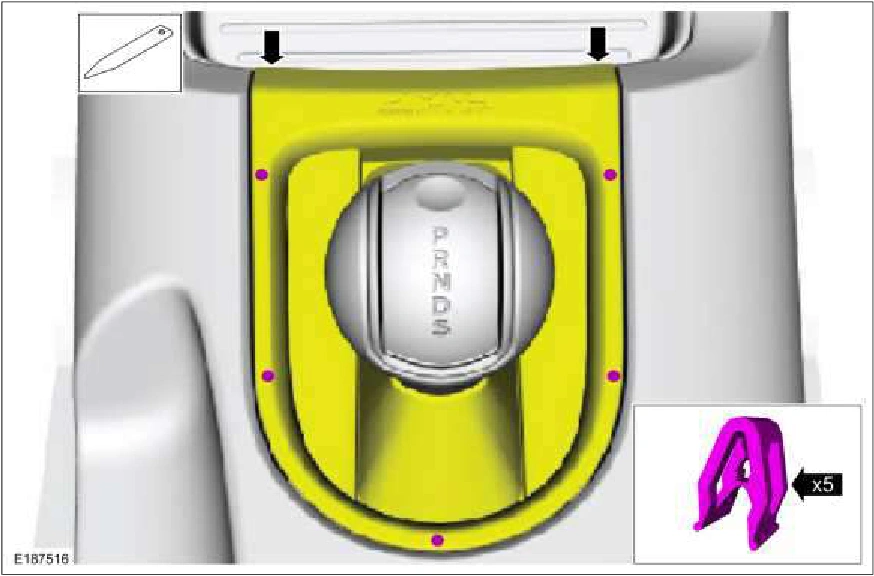

3. Remove the selector lever bezel. Use the General Equipment: Interior Trim Remover

Passive Anti-Theft System (PATS) Front Antenna — original illustration 1, reference 6031Original colors & callouts · Select to enlarge

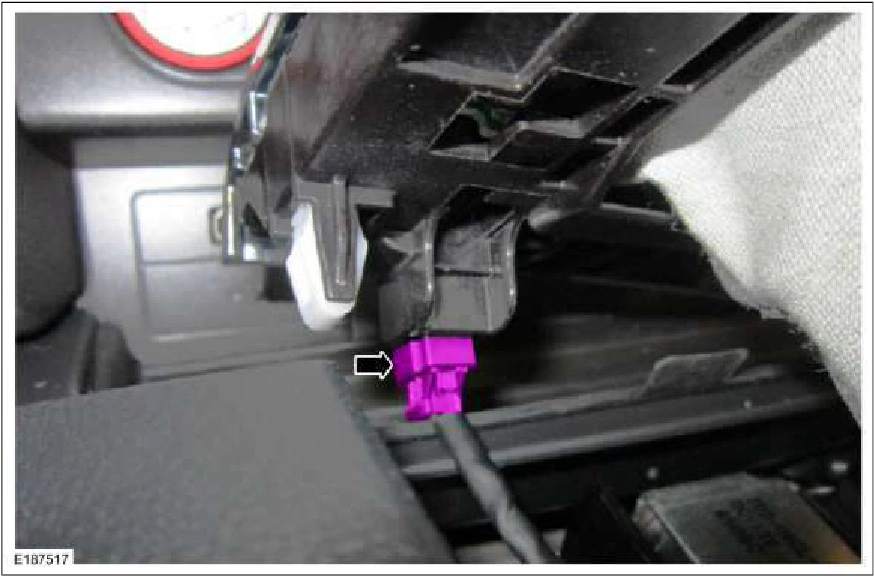

4. Disconnect the electrical connector and pasition aside the selector lever boot.

Passive Anti-Theft System (PATS) Front Antenna — original illustration 2, reference 6031Original colors & callouts · Select to enlarge

5. Open the floor console lid.
