Passive Anti-Theft System (PATS) Front Antenna

419-01B Passive Anti-Theft System (PATS) 2016 Mustang

Removal and Installation Procedure revision date: 06/30/2014

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Automatic transmission shown, manual transmission similar.

NOTE: Removal steps in this procedure may contain installation details.

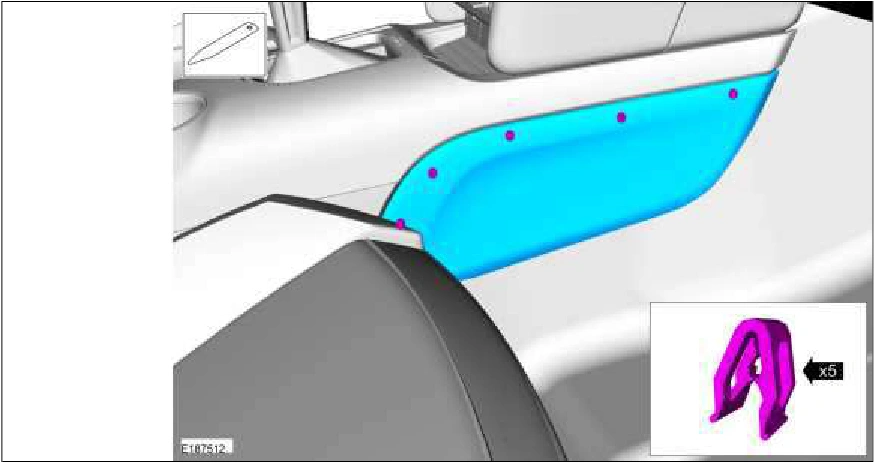

1. Release the clips and remove the floor console RH side trim panel. Use the General Equipment: Interior Trim Remover

Passive Anti-Theft System (PATS) Front Antenna — original illustration 1, reference 6030Original colors & callouts · Select to enlarge

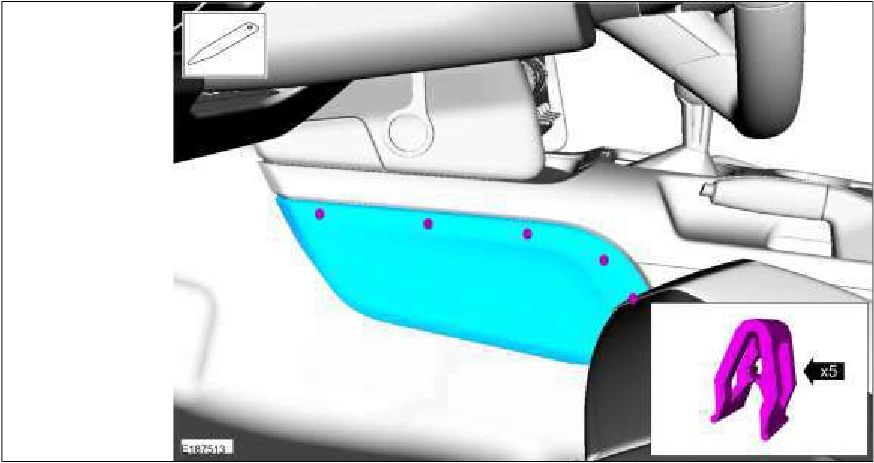

2. Release the clips and the floor console LH side trim panel. Use the General Equipment: Interior Trim Remover

Passive Anti-Theft System (PATS) Front Antenna — original illustration 2, reference 6030Original colors & callouts · Select to enlarge

Source reference 6030
