Blind Spot Information System - System Operation and Component Description
System Operation
Blind Spot Information System (BLIS®) and Cross Traffic Alert (CTA)

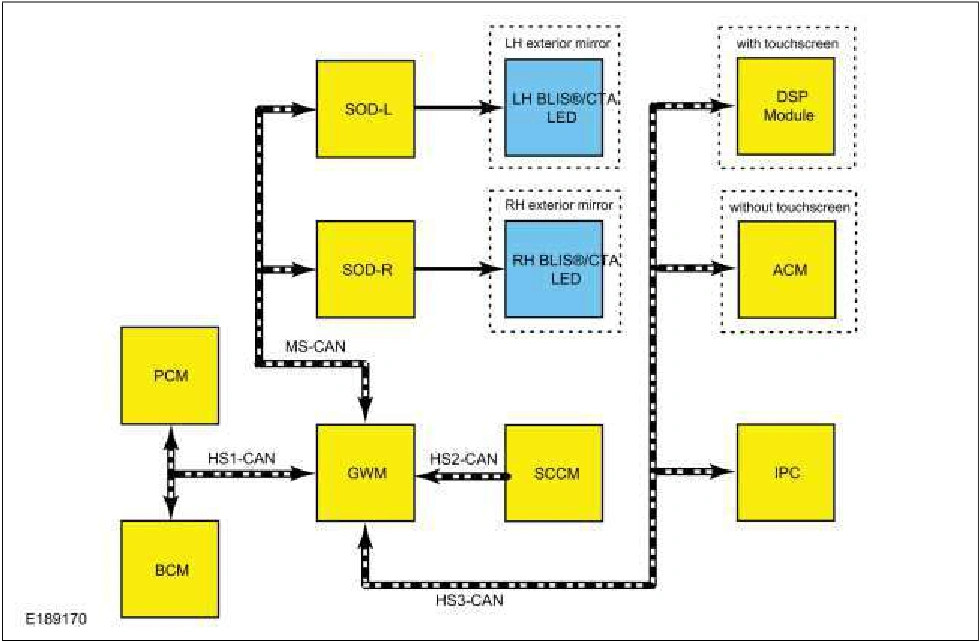

System Diagram
Network Message Chart
IPC Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
Side obstacle sensor status - left | SODL | Used to communicate the operating status of the SODL and to command the Cross Traffic Alert (CTA) message center displays. |
Side obstacle sensor status - right | SODR | Used to communicate the operating status of the SODR and to command the Cross Traffic Alert (CTA) message center displays. |
Cross traffic alert left status | SODL | Used to command the Cross Traffic Alert (CTA) audio chime and the BLIS® RTT. |
Cross traffic alert right status | SODR |
ACM Network Input Messages
