Fuse and Relay Information

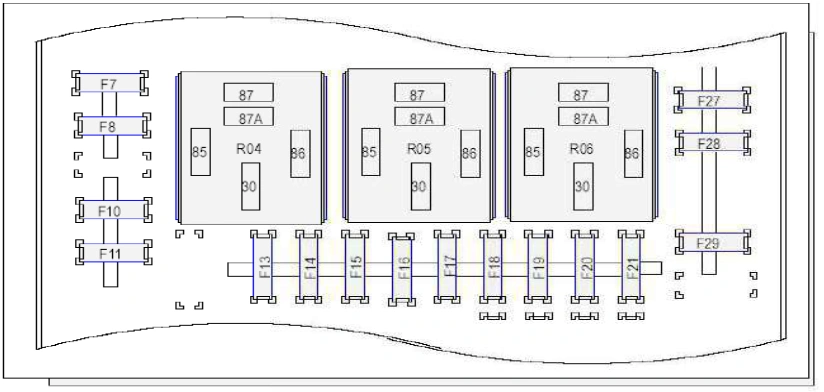

Cell 11 "Fuse and Relay Information" contains a view of the fuse/relay box in which fuses and relays are identified, numbered and named. Fuse and relay numbering and naming follow the indication of the fuse panel cover. In addition, for all removable relays, pin positions are added to illustrate proper orientation.

Fuse and relay identification and orientation example · source reference 6222Original colors & callouts · Select to enlarge

Power Distribution

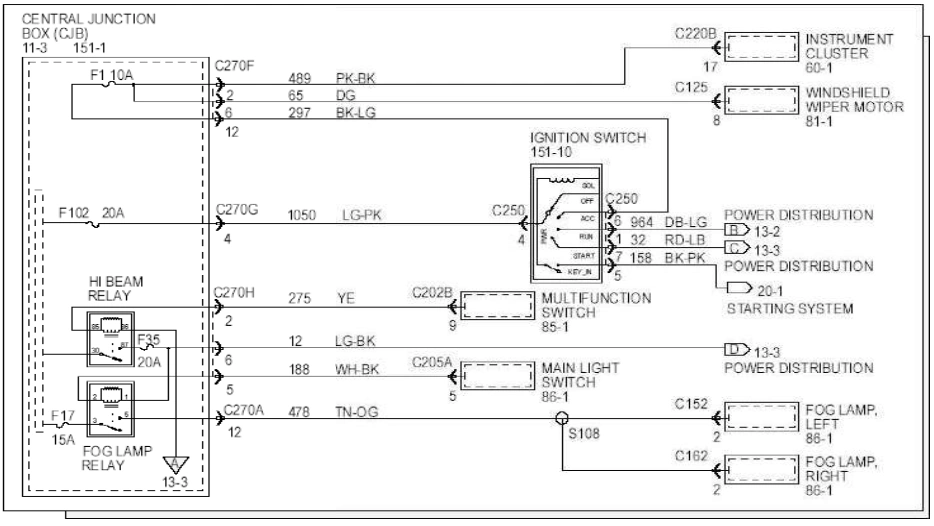

Cell 13 "Power Distribution" shows the current feed circuits. The current path is shown from the battery to the ignition switch and to all fuses. It also shows the circuits protected by each fuse. The circuit is traced from the fuse to the component. All details (wires, splices, connectors) between the fuse and the first component are shown.

Power distribution schematic example · source reference 6222Original colors & callouts · Select to enlarge
