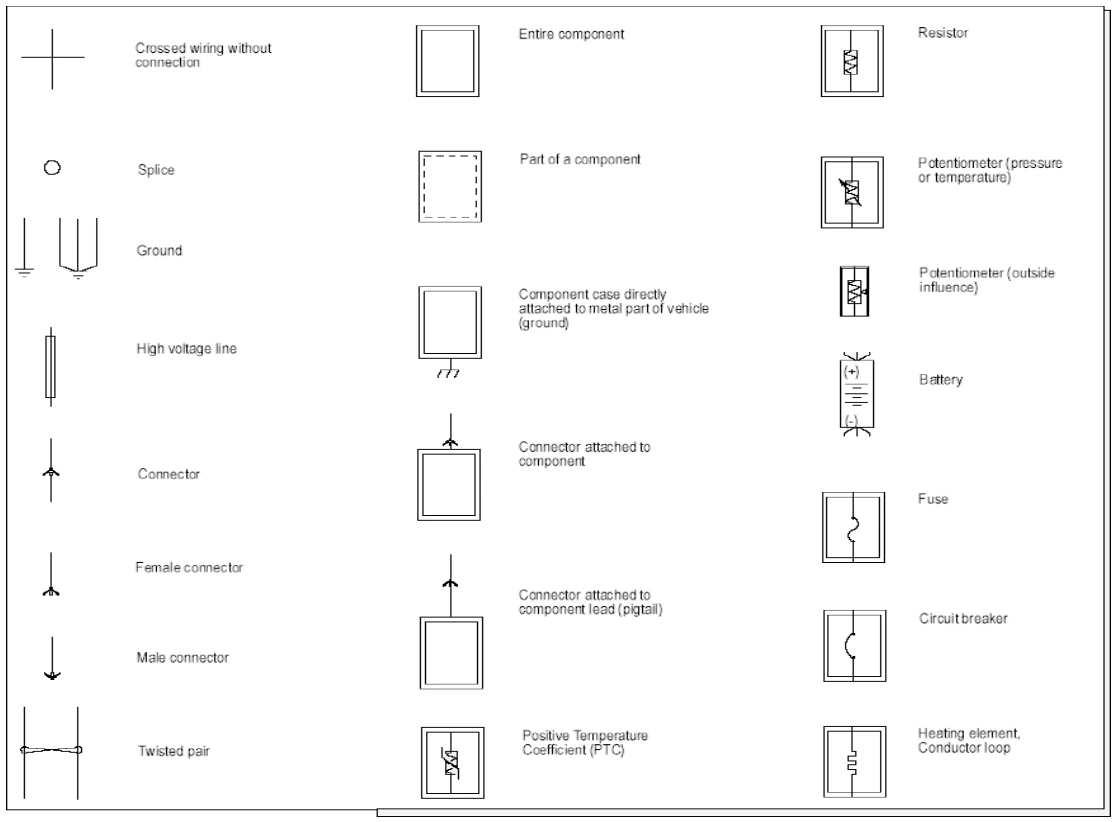

Crossed wiring without
connection
Ground
High vollage line
A Connecter
Female connector
| Male connector
Twisted pair
Entire component
Part of 2a component
Component case directly
attached to metal part of vehicle
(ground)
Connecter attached to
component
Connector attached to
component lead (pigtail)
Positive Temperature
Coefficient (PTC)
Resistor
Potentiometer {pressure
or temperature)
Fotentiometar {outside
influence)
Battery
Fuse
Circuit breaker
Heating element,
Conductor loo
