303-01C Engine Cooling - 5.0L — 2016 workshop reference 627

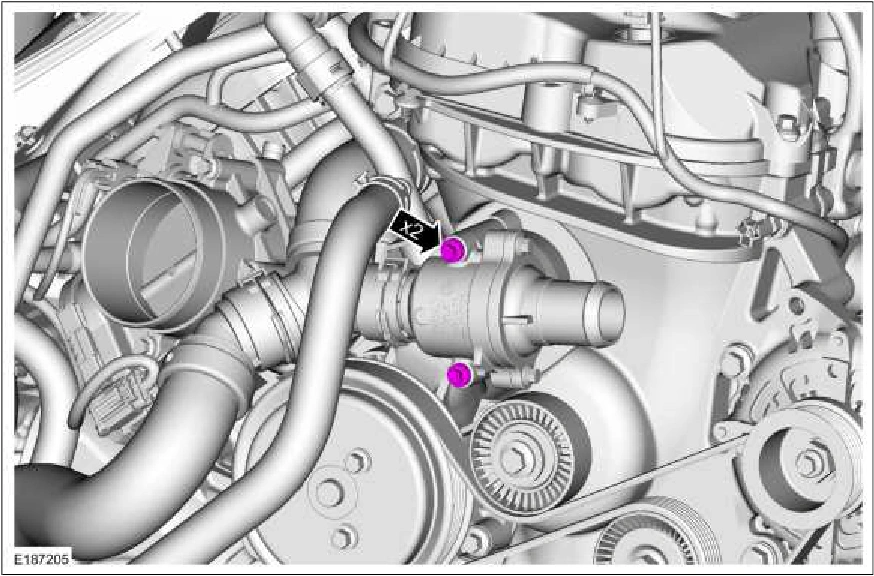

303-01C Engine Cooling - 5.0L — original illustration 1, reference 627Original colors & callouts · Select to enlarge

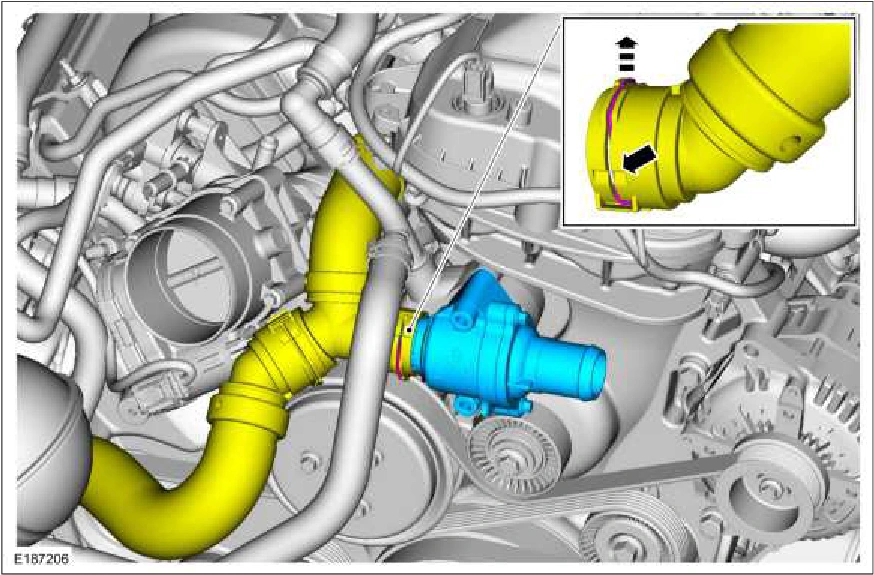

6. Pull the upper radiator hose T-connector spring clip up until the end of the clip is in the detent on the quick connect coupling and remove the thermostat housing from the upper radiator hose T-connector.

303-01C Engine Cooling - 5.0L — original illustration 2, reference 627Original colors & callouts · Select to enlarge

7. Remove and discard the thermostat housing gasket.
