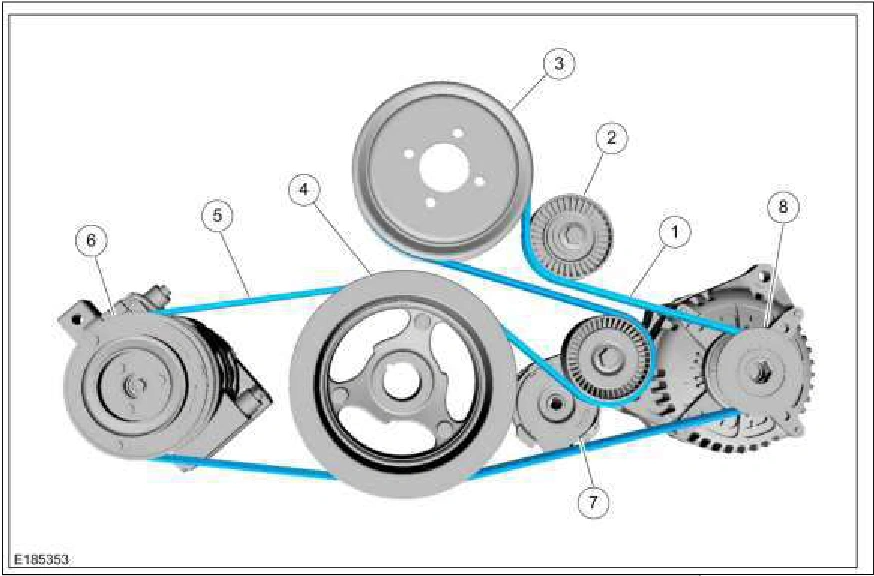

Accessory Drive - Component Location
Item | Description | |
1 | Accessory drive belt | |
2 | Drive belt idler pulley assembly | |
3 | Coolant pump pulley | |
4 | Crankshaft belt pulley | |
5 | Belt - A/C compressor | |
6 | Pulley - A/C compressor | |
7 | Accessory drive belt tensioner | |
8 | Generator pulley | |
