Starter Motor
Base Part Number: 11000
Removal
WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.
NOTE: Removal steps in this procedure may contain installation details.
1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
2. Disconnect the battery. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

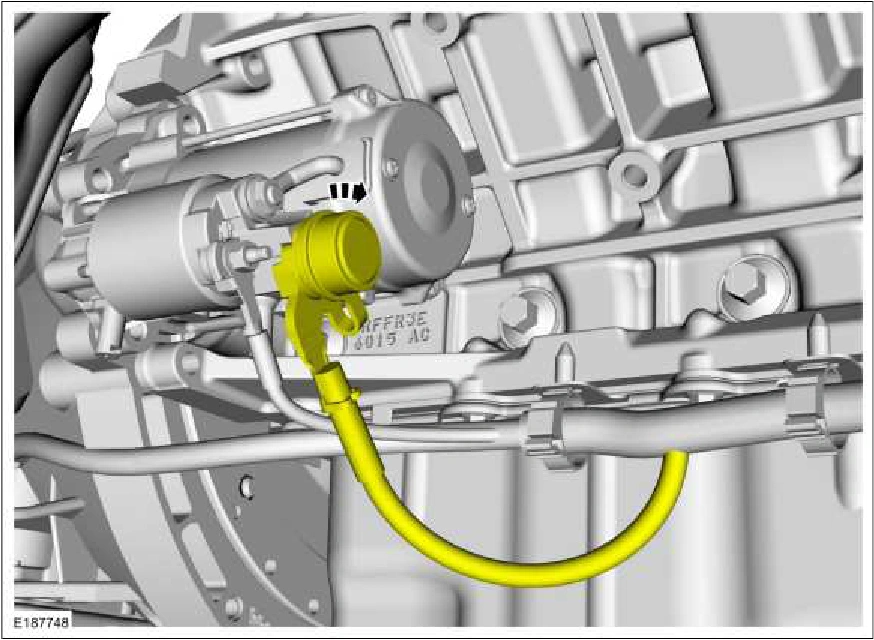

3. Open the starter motor solenoid battery cable cover.
Step 4
1. Remove the starter motor solenoid battery cable nut and then disconnect the starter motor solenoid battery cable. Torque : 106 lb.in (12 Nm)
2. Remove the starter motor solenoid wire nut and then disconnect the starter motor solenoid wire. Torque : 53 lb.in (6 Nm)
