Starting System — 2016 workshop reference 688

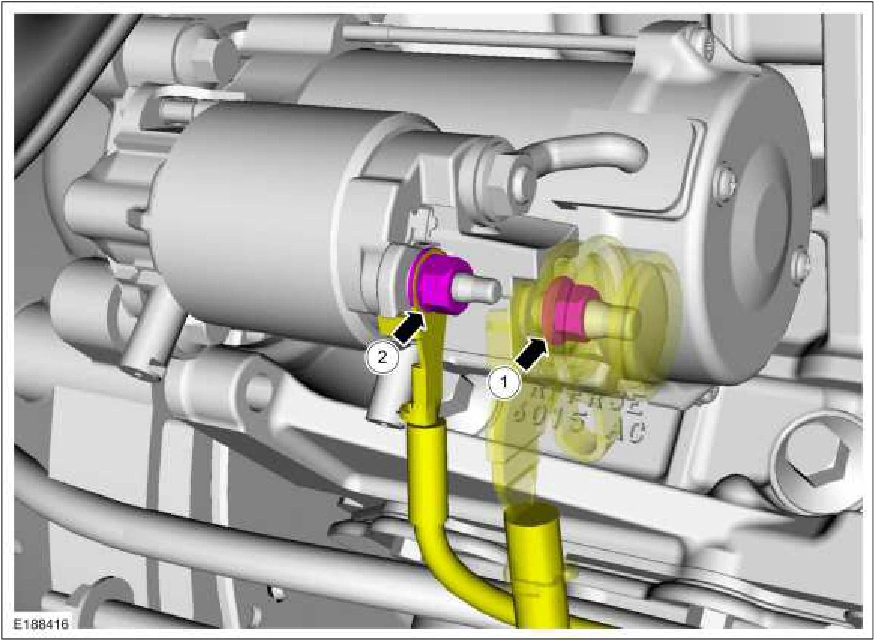

Starting System — original illustration 1, reference 688Original colors & callouts · Select to enlarge

5. Remove the starter motor mounting bolts and then remove the starter motor. Torque : 18 lb.ft (25 Nm)

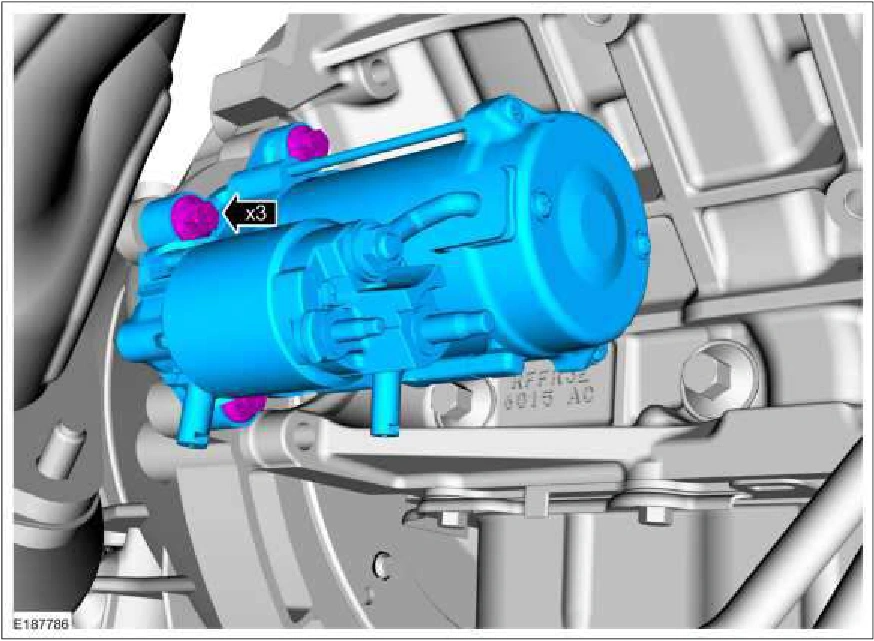

Starting System — original illustration 2, reference 688Original colors & callouts · Select to enlarge

6. Inspect the starter motor drive gear and flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection (303-06C Starting System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

Installation

Source reference 688
