303-08C Engine Emission Control - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Description and Operation

08/4/2014

Engine Emission Control - Component Location

5.0L 32V Ti-VCT

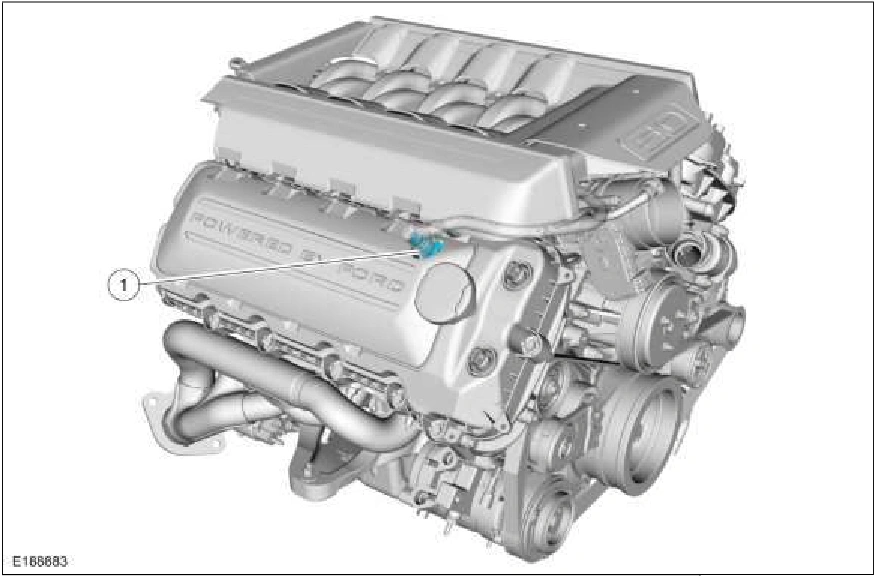

303-08C Engine Emission Control - 5.0L — original illustration 1, reference 701Original colors & callouts · Select to enlarge
Item	Description
1	PCV valve
