Positive Crankcase Ventilation (PCV) Valve

303-08C Engine Emission Control - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/23/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

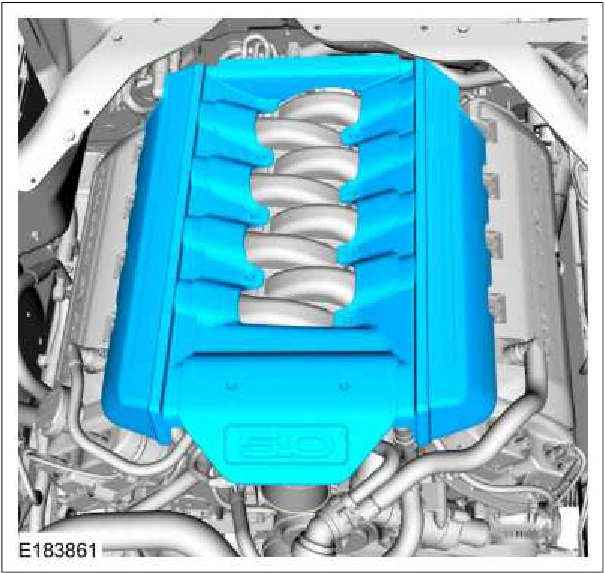

Remove the engine appearance cover.

303-08C Engine Emission Control - 5.0L — original illustration 1, reference 704Original colors & callouts · Select to enlarge

2. Disconnect the crankcase ventilation tube-to-PCV valve quick connect coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

Source reference 704
