Installation

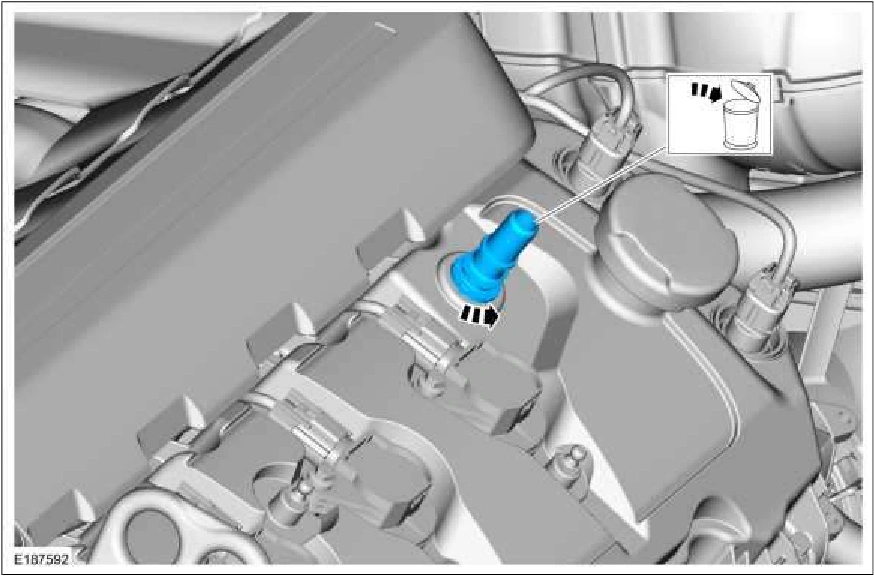

303-08C Engine Emission Control - 5.0L — original illustration 1, reference 706Original colors & callouts · Select to enlarge

NOTICE: A new PCV valve must be installed if removed. Damage will occur to the locking mechanism on the PCV valve.

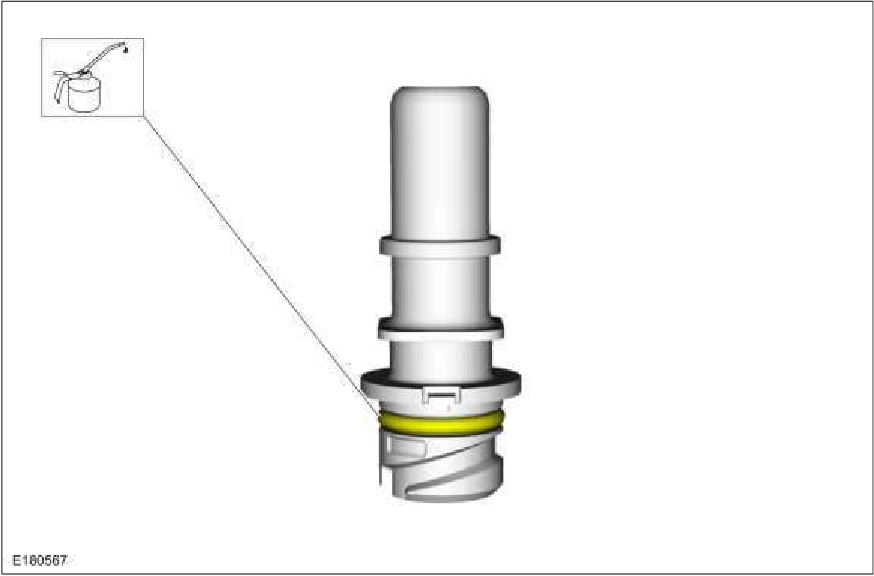

1. Lubricate the new PCV valve O-ring seal with clean engine oil.

303-08C Engine Emission Control - 5.0L — original illustration 2, reference 706Original colors & callouts · Select to enlarge

2. To install, reverse the removal procedure.

Source reference 706
