303-08C Engine Emission Control - 5.0L — 2016 workshop reference 705

303-08C Engine Emission Control - 5.0L — original illustration 1, reference 705Original colors & callouts · Select to enlarge

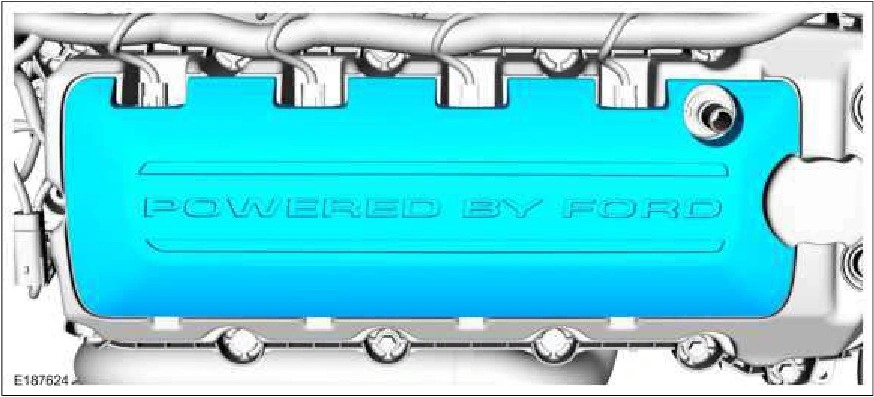

3. Remove the RH spark plug cover.

303-08C Engine Emission Control - 5.0L — original illustration 2, reference 705Original colors & callouts · Select to enlarge

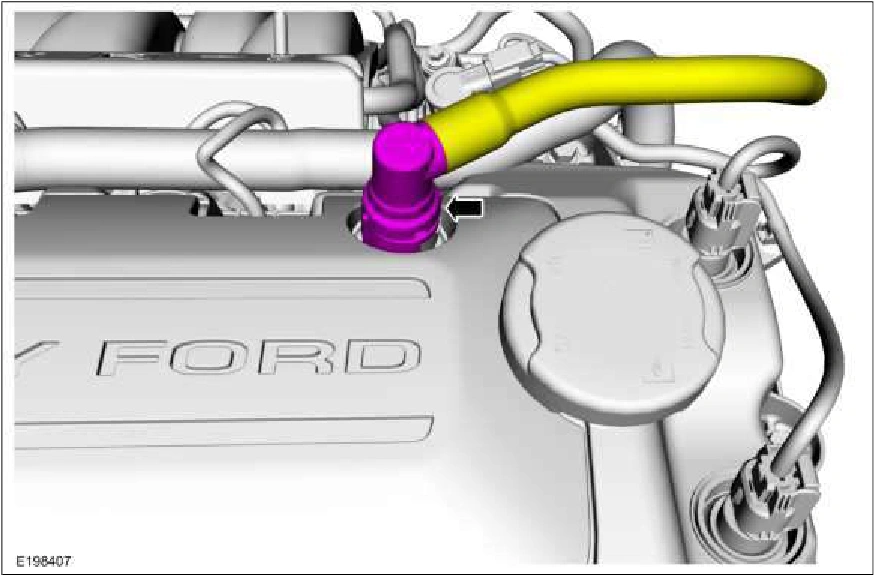

4. Rotate the PCV valve counterclockwise and remove the PCV valve. Discard the PCV valve.
