Air Cleaner

303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L 2016 Mustang Ti-VCT V8 (308kW/418PS)

Procedure revision date:

Removal and Installation

04/9/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

Step 1

1. Loosen the clamp and position the air cleaner outlet pipe from the air cleaner. Torque : 44 lb.in (5 Nm)

2. Disconnect the MAF sensor electrical connector.

3. Detach and position the wire harness from the air cleaner.

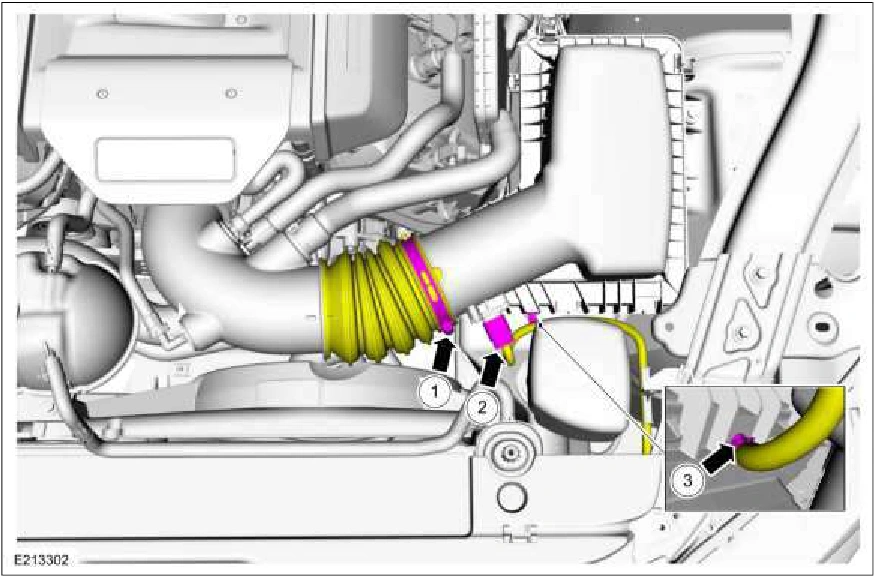

303-12C Intake Air Distribution and Filtering - 5.0L — original illustration 1, reference 709Original colors & callouts · Select to enlarge

Step 2

1. Detach and position the sound symposer from the air cleaner.

2. Remove the bolt and the air cleaner. Torque : 71 lb.in (8 Nm)

Source reference 709
