Air Cleaner Outlet Pipe

303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L 2016 Mustang Ti-VCT V8 (308kW/418PS)

Procedure revision date:

Removal and Installation

01/16/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the engine appearance cover.

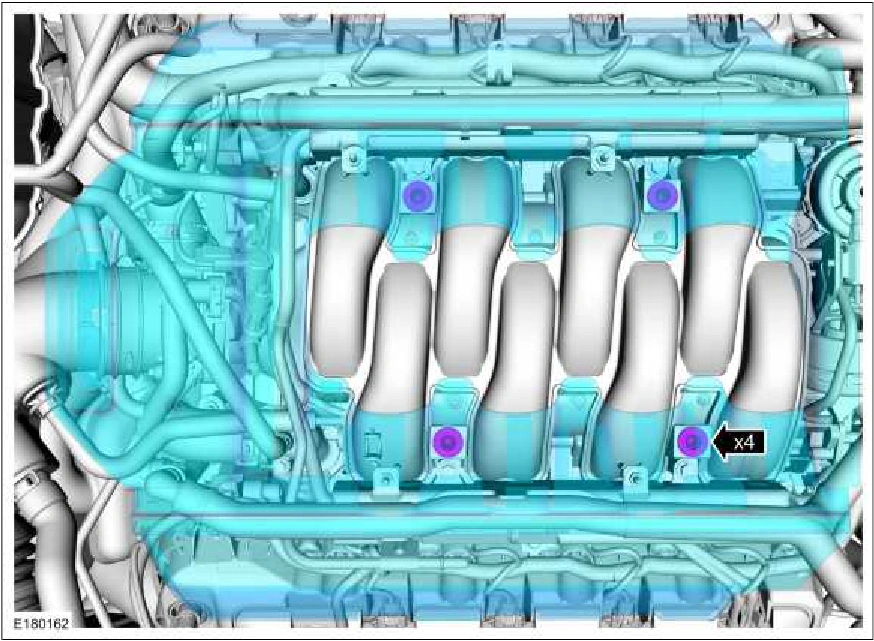

303-12C Intake Air Distribution and Filtering - 5.0L — original illustration 1, reference 711Original colors & callouts · Select to enlarge

Step 2

1. Disconnect and position aside the 2 brake booster tubes, crankcase ventilation tube and resonator air inlet tube.

2. Loosen the 2 clamps and remove the air cleaner outlet pipe. Torque : 48 lb.in (5.4 Nm)

Source reference 711
