Evaporative Emissions - System Operation and Component Description
System Operation
Refer to the PC/ED manual section 1 Description and Operation.

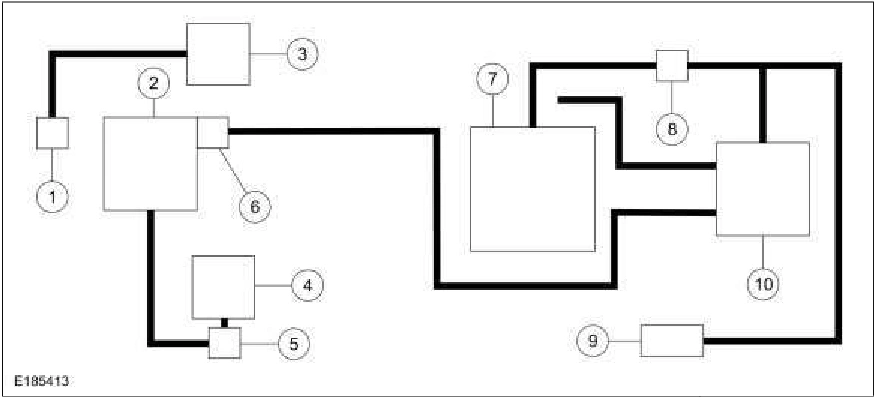

System Diagram
Item | Description | |
1 | Air Cleaner (ACL) outlet pipe | |
2 | Intake manifold | |
3 | RH valve cover | |
4 | LH valve cover | |
5 | PCV valve (part of LH valve cover) | |
6 | EVAP canister purge valve | |
7 | Fuel tank | |
8 | Fuel Tank Pressure (FTP) sensor and tube | |
9 | Fuel tank filler pipe | |
10 | EVAP canister | |
Copyright © 2016 Ford Motor Company
