501-05 Interior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 04/23/2015

Headliner - Lowering

Base Part Number: 5451916

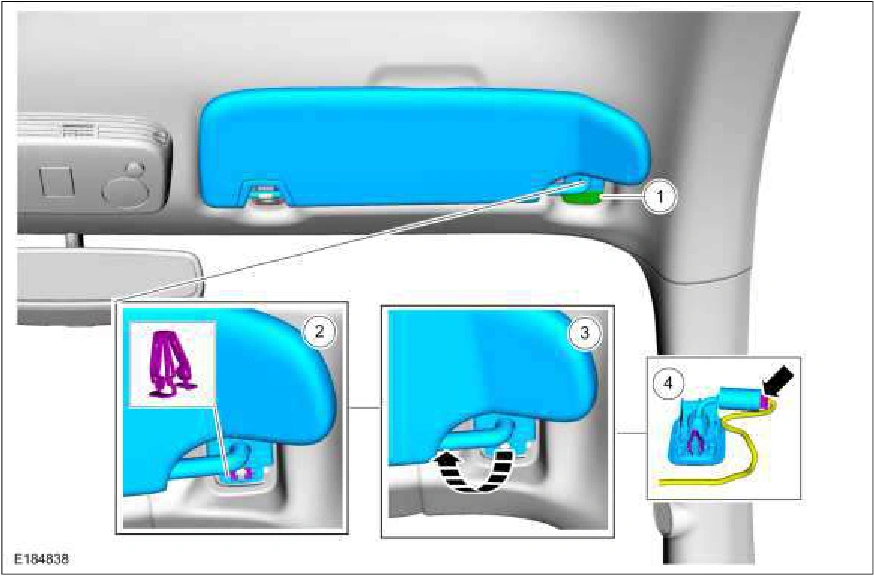

1. NOTE: RH side shown, LH side similar.

On both sides. Remove the sun visors.

1. Remove the retainer cap.

2. Release the retainer.

3. Remove the sun visor.

4. If equipped. Disconnect the electrical connector.

Headliner - Lowering — original illustration 1, reference 862Original colors & callouts · Select to enlarge

2. On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel - Coupe (501-05 Interior Trim and Ornamentation, Removal and Installation).

3. Detach the wire harness and electrical connector retainers and disconnect the electrical connector.
