Headliner — 2016 workshop reference 859

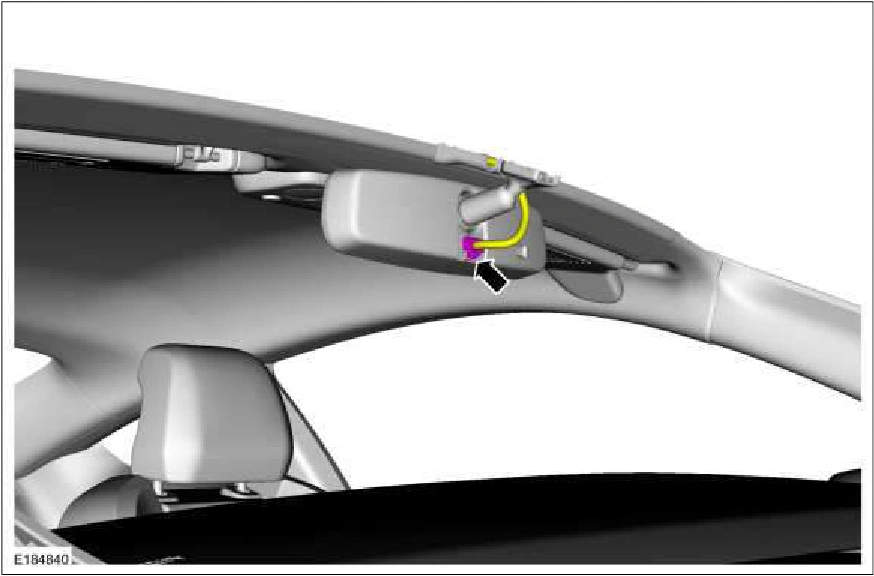

Headliner — original illustration 1, reference 859Original colors & callouts · Select to enlarge

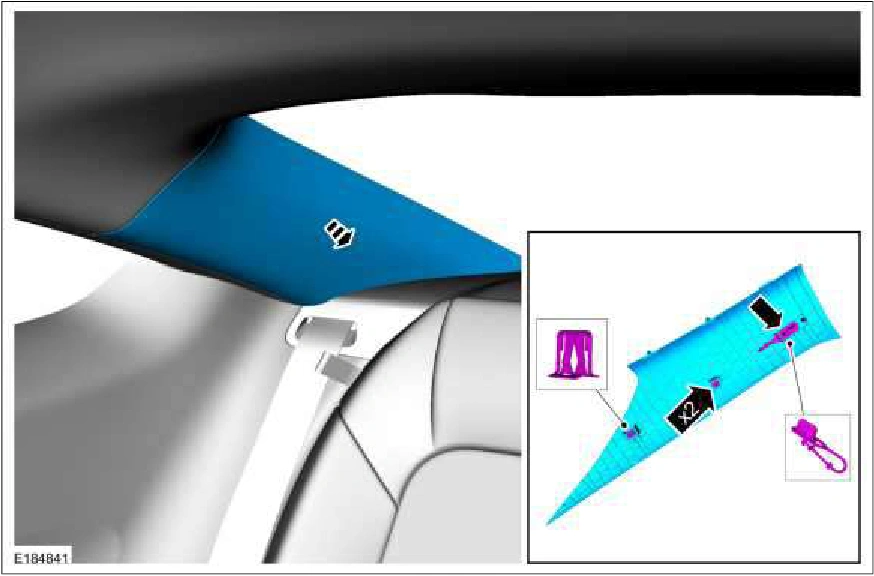

6. NOTE: RH side shown, LH side similar.

On both sides. Release the clips, disconnect the tether clip and remove the D-pillar trim panel.

Headliner — original illustration 2, reference 859Original colors & callouts · Select to enlarge

7. On both sides, remove the rear quarter trim panels. Refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

8. On both sides. Remove the head restraints.

Source reference 859
