4. If equipped with a compass module which requires calibration, check the compass zone and calibration.
Mirror type 2

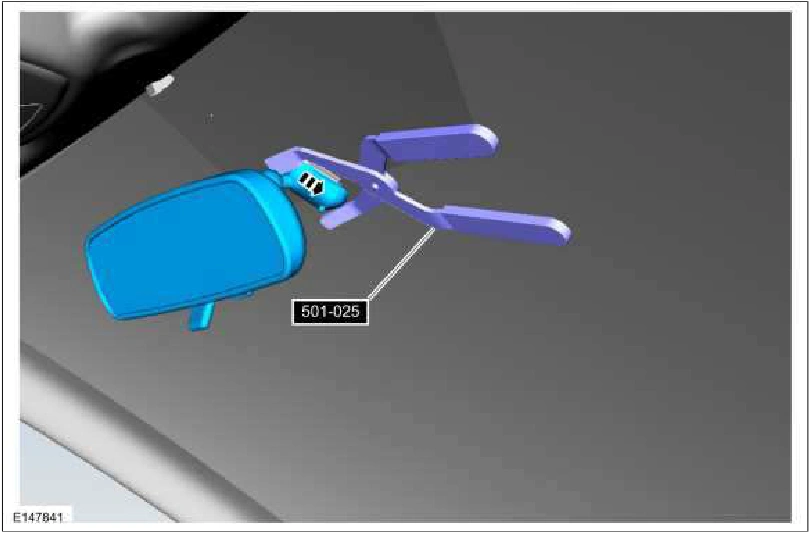

5. Using the interior mirror installer, fully seat the interior mirror. Use Special Service Tool: 501-025 Installer, Rear View Mirror.
6. If equipped with a compass module which requires calibration, check the compass zone and calibration.
Mirror type 3
7. To install, reverse the removal procedure.
Mirror type 4
8. To install, reverse the removal procedure.
9. If a new mirror has been installed, use a diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions. If a new mirror has been installed, carry out the camera alignment using a scan tool.
Mirror type 5
10. Slide the interior mirror onto the mirror mount until the locking tab is engaged.
