Interior Rear View Mirror — 2016 workshop reference 973

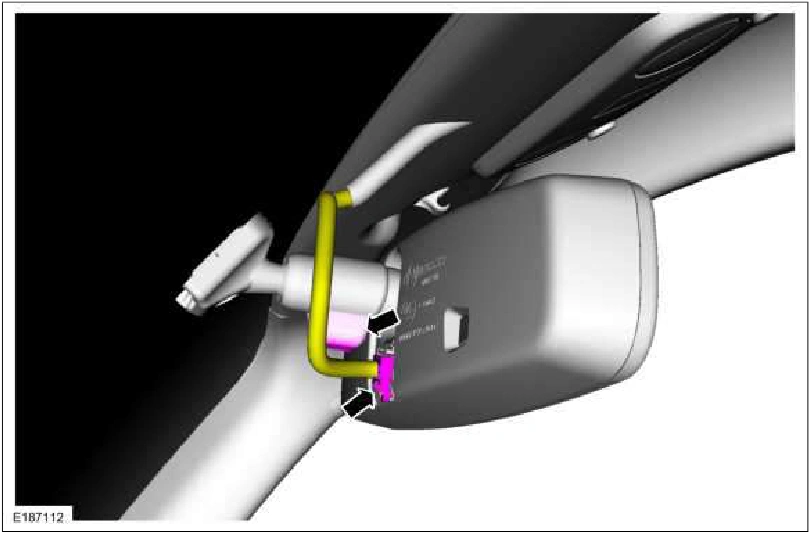

17. Disconnect the electrical connector and unclip the wiring harness.

Interior Rear View Mirror — original illustration 1, reference 973Original colors & callouts · Select to enlarge

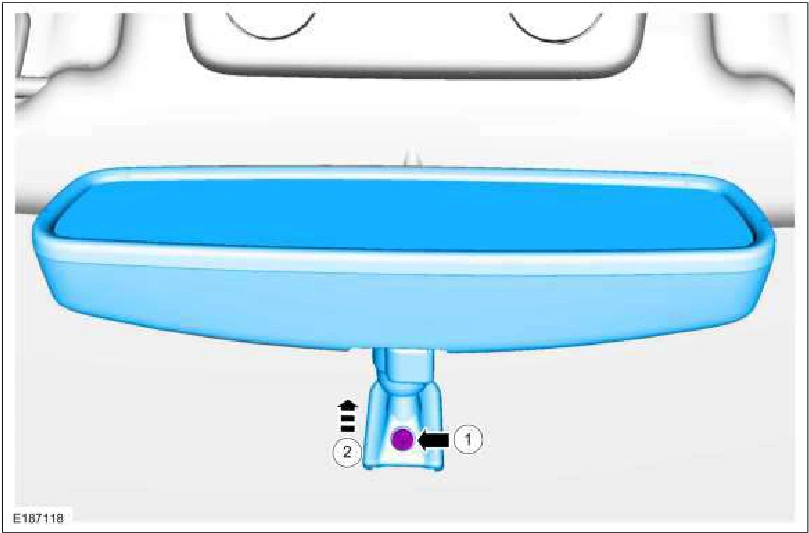

18. Remove the interior mirror.

1. Loosen the set screw. Torque : 16 lb.in (1.8 Nm)

2. Slide the interior mirror upward.

Interior Rear View Mirror — original illustration 2, reference 973Original colors & callouts · Select to enlarge

Installation

Mirror type 1

1. Slide the interior rear view mirror over the windshield bracket from the top.

Source reference 973
