Interior Rear View Mirror — 2016 workshop reference 971

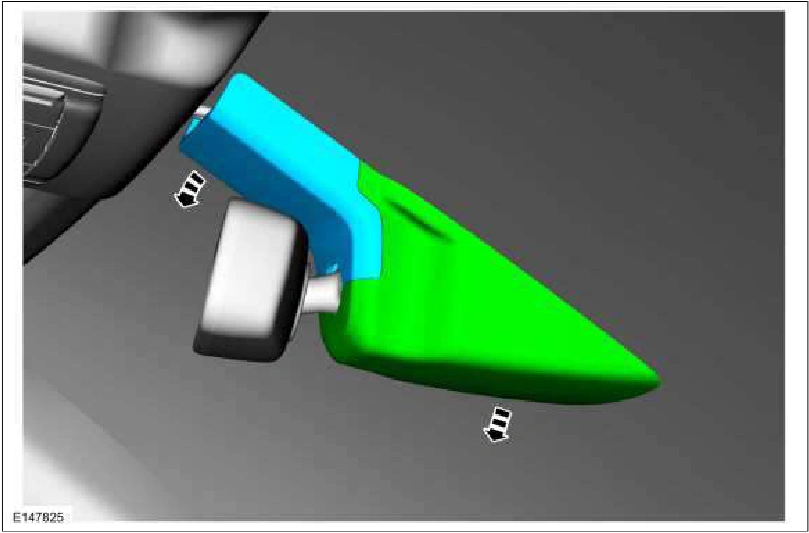

Interior Rear View Mirror — original illustration 1, reference 971Original colors & callouts · Select to enlarge

14. Disconnect the interior mirror electrical connector.

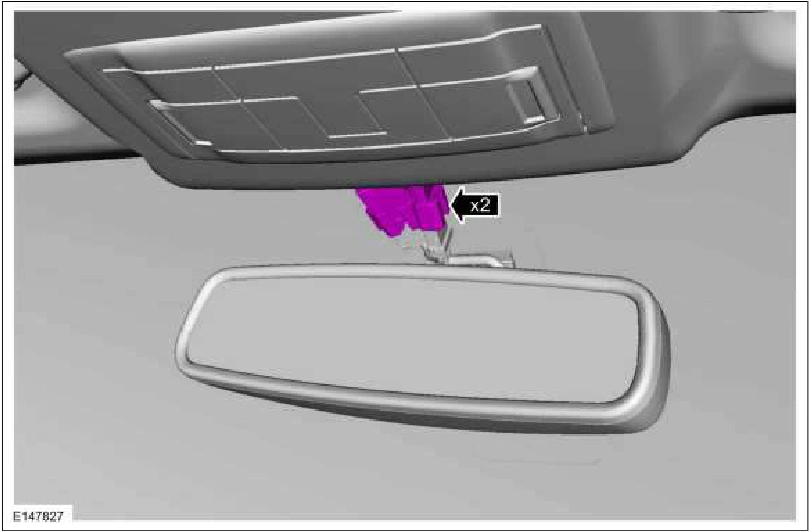

Interior Rear View Mirror — original illustration 2, reference 971Original colors & callouts · Select to enlarge

15. Remove the interior mirror.

1. Turn the interior mirror assembly counter clock-wise.

2. Remove the interior mirror off the mirror mount.

Source reference 971
