Interior Rear View Mirror — 2016 workshop reference 969

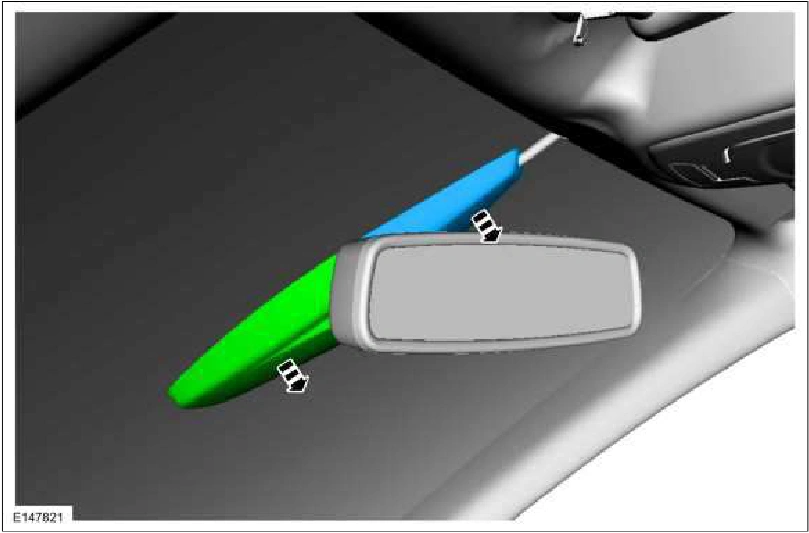

Interior Rear View Mirror — original illustration 1, reference 969Original colors & callouts · Select to enlarge

10. Disconnect the interior mirror electrical connector.

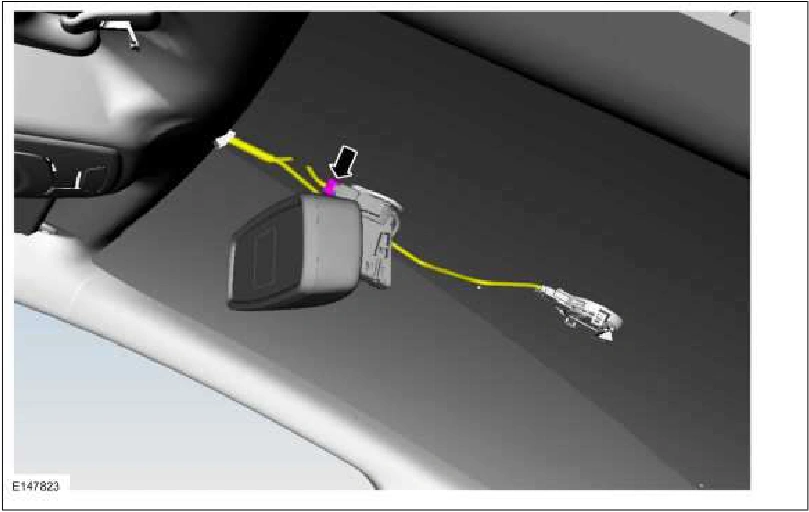

Interior Rear View Mirror — original illustration 2, reference 969Original colors & callouts · Select to enlarge

11. Remove the interior mirror.

1. Position the interior mirror assembly to release the indexing tab.

2. Inspect the indexing tab and turn the interior mirror slightly counter clock-wise.

3. Turn the interior mirror 45 degrees counter clock-wise.

4. Pull the interior mirror off the mirror mount.

Source reference 969
