Interior Rear View Mirror — 2016 workshop reference 967

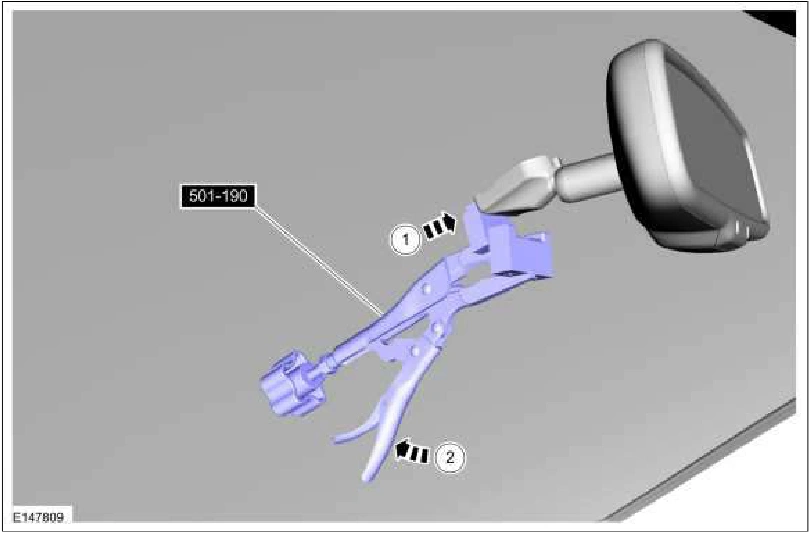

Interior Rear View Mirror — original illustration 1, reference 967Original colors & callouts · Select to enlarge

6. Using a closed hand, bump the adjustment handle of the interior mirror remover to slide the mirror upward on the mirror mount.

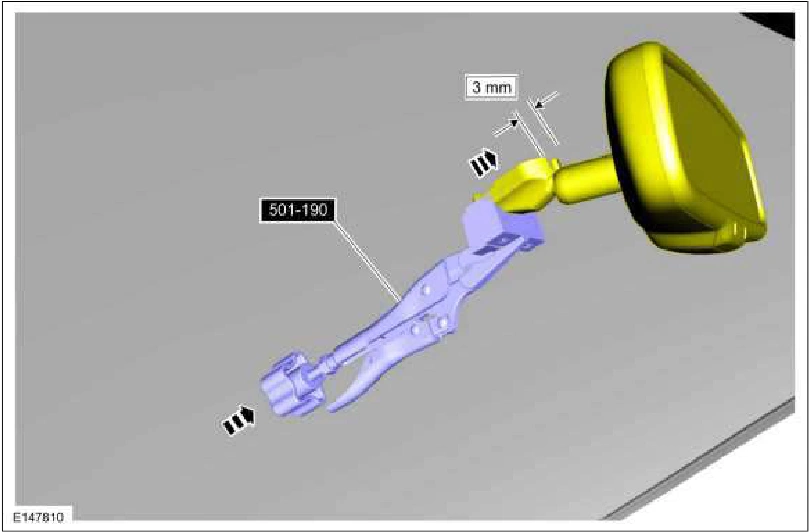

Interior Rear View Mirror — original illustration 2, reference 967Original colors & callouts · Select to enlarge

7. Slide the interior mirror off the interior mirror mount.
