Interior Rear View Mirror — 2016 workshop reference 968

Interior Rear View Mirror — original illustration 1, reference 968Original colors & callouts · Select to enlarge

Mirror type 2

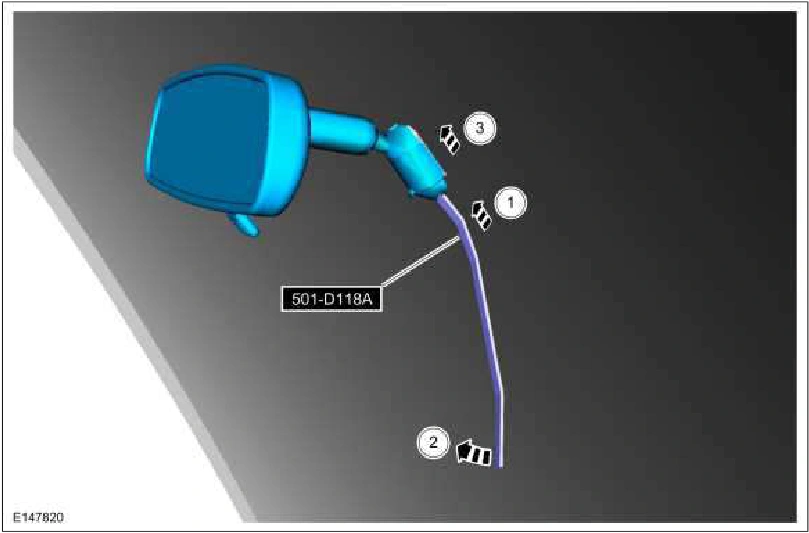

8. Remove the interior mirror.

1. Insert the interior mirror remover into the release tab. Use Special Service Tool: 501-D118A (501-D118) Mirror Remover.

2. Pull the lower edge of the interior mirror remover away from the windshield.

3. Slide the interior mirror off the mirror mount.

Interior Rear View Mirror — original illustration 2, reference 968Original colors & callouts · Select to enlarge

Mirror type 3

9. Remove the rain sensor covers.
