Interior Rear View Mirror — 2016 workshop reference 966

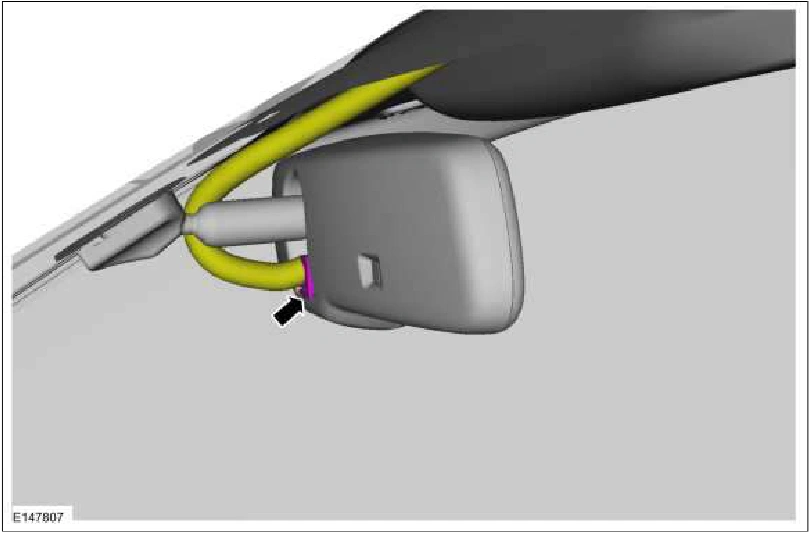

Interior Rear View Mirror — original illustration 1, reference 966Original colors & callouts · Select to enlarge

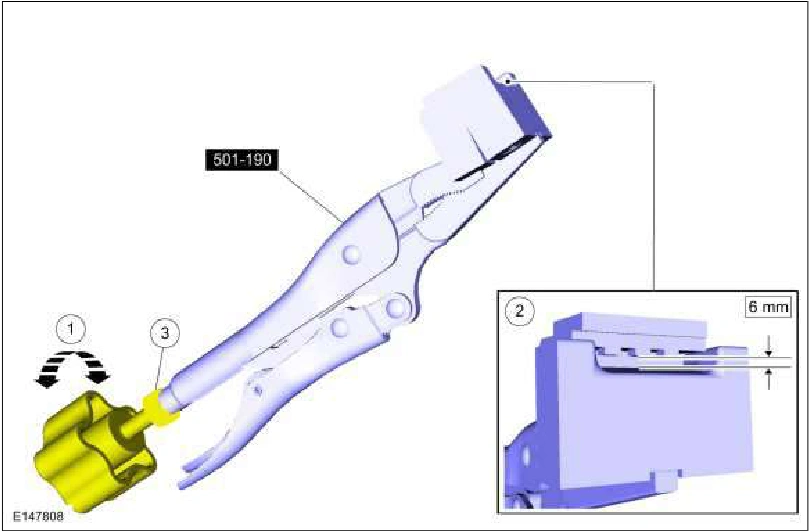

4. Adjust the jaws on the interior mirror remover.

Interior Rear View Mirror — original illustration 2, reference 966Original colors & callouts · Select to enlarge

5. NOTICE: Make sure the interior mirror remover is fully inserted into the rear view mirror mount access hole.

Otherwise, damage to the windshield glass may occur.

Using the interior mirror remover, release the locking tab.

Source reference 966

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
