Exterior Mirror — 2016 workshop reference 963

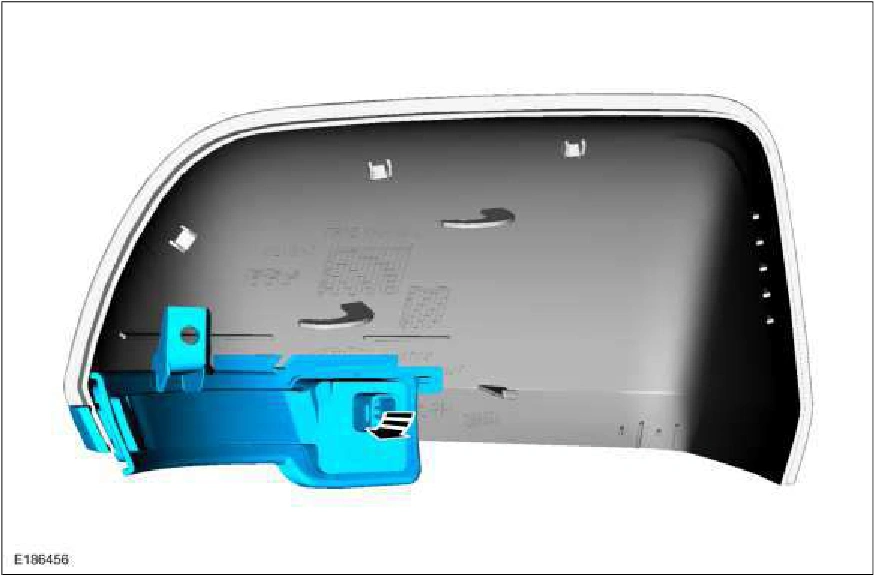

Exterior Mirror — original illustration 1, reference 963Original colors & callouts · Select to enlarge

Puddle lamp

22. Remove the mirror glass.

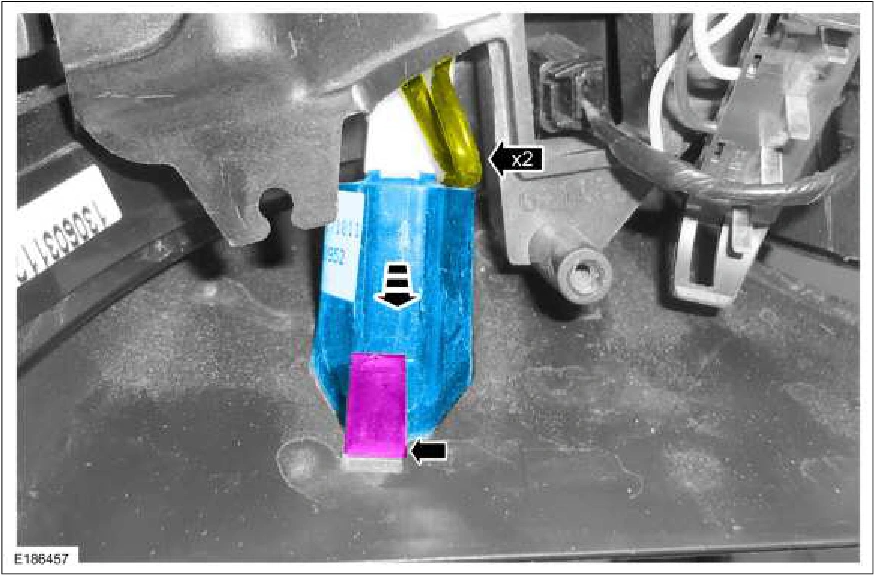

23. Press the tab, lower the puddle lamp and disconnect the electrical connectors.

Exterior Mirror — original illustration 2, reference 963Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. If equipped, synchronize the power folding mirrors.
