Exterior Mirror — 2016 workshop reference 961

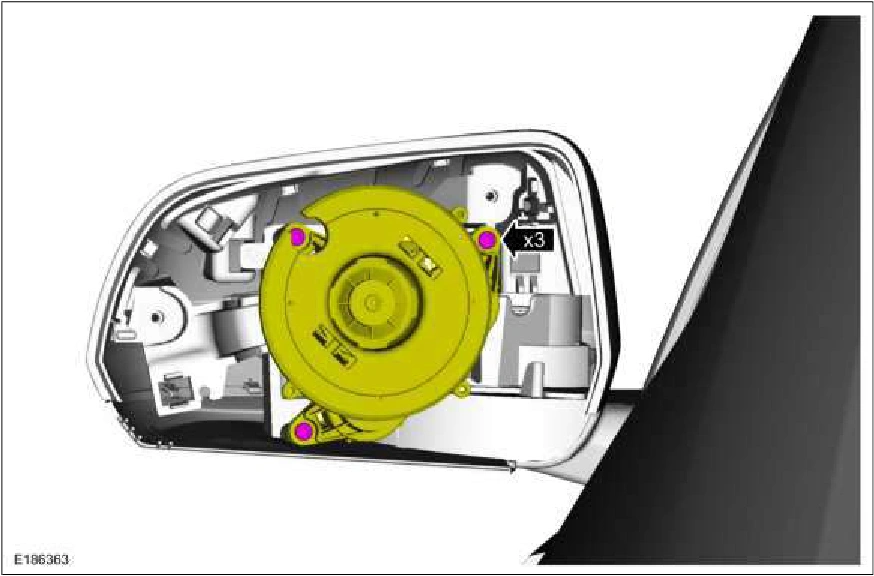

Exterior Mirror — original illustration 1, reference 961Original colors & callouts · Select to enlarge

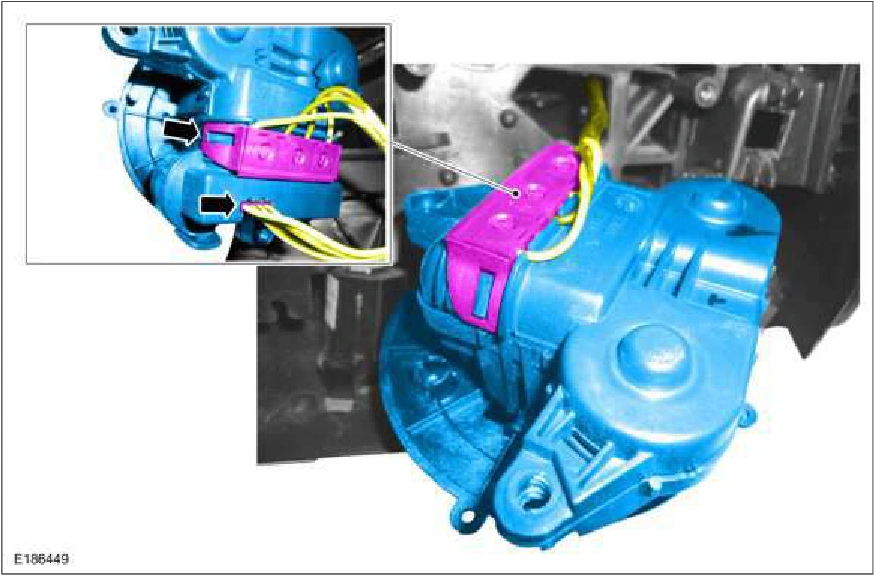

16. Disconnect the electrical connectors and remove the mirror motor.

Exterior Mirror — original illustration 2, reference 961Original colors & callouts · Select to enlarge

Mirror cover

17. Remove the mirror motor.

18. If equipped, disconnect the mirror mounted side turn signal.
