Exterior Mirror — 2016 workshop reference 962

Exterior Mirror — original illustration 1, reference 962Original colors & callouts · Select to enlarge

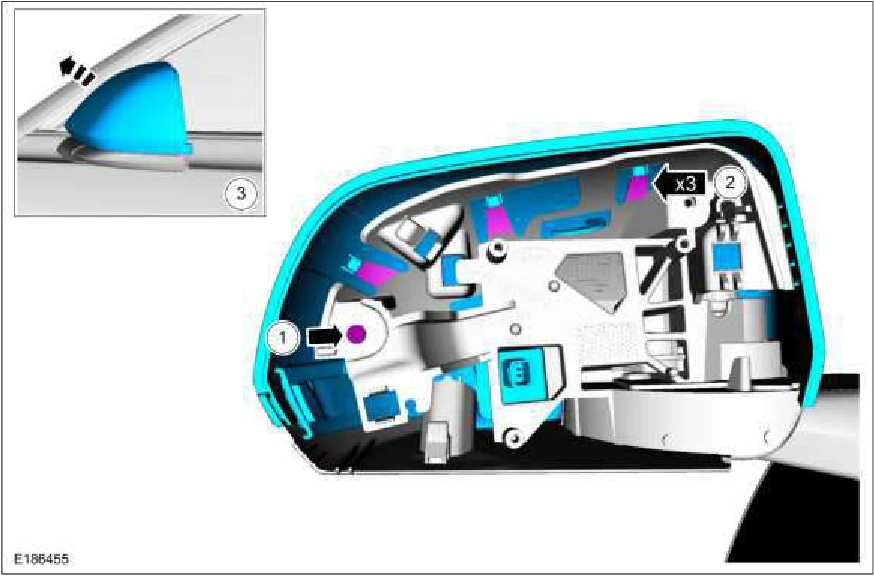

19. Remove the mirror cover.

1. Remove the screw.

2. Release the tabs.

3. Remove the mirror cover.

Exterior Mirror — original illustration 2, reference 962Original colors & callouts · Select to enlarge

Mirror mounted turn signal

20. Remove the mirror cover.

21. Remove the mirror mounted turn signal.
