Exterior Mirror — 2016 workshop reference 959

Exterior Mirror — original illustration 1, reference 959Original colors & callouts · Select to enlarge

Mirror glass

11. Position aside the mirror glass.

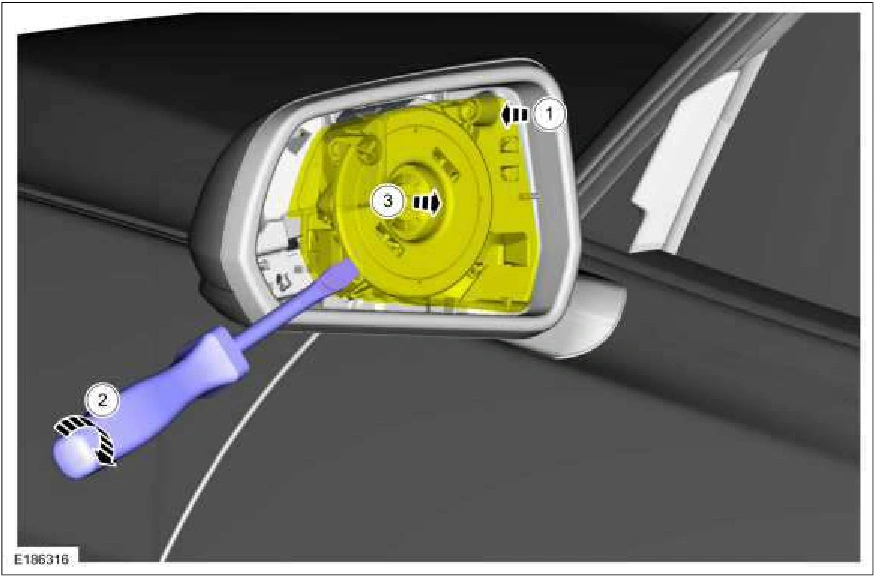

1. Position the mirror glass fully in and up.

2. Using a flat blade screwdriver, insert the blade between the mirror glass and motor. Twist and release the mirror glass.

3. Position aside the mirror glass.

Exterior Mirror — original illustration 2, reference 959Original colors & callouts · Select to enlarge

12. NOTE: The number and location of the electrical connectors will vary due to option content.

Disconnect the mirror glass electrical connectors.
