Exterior Mirror — 2016 workshop reference 958

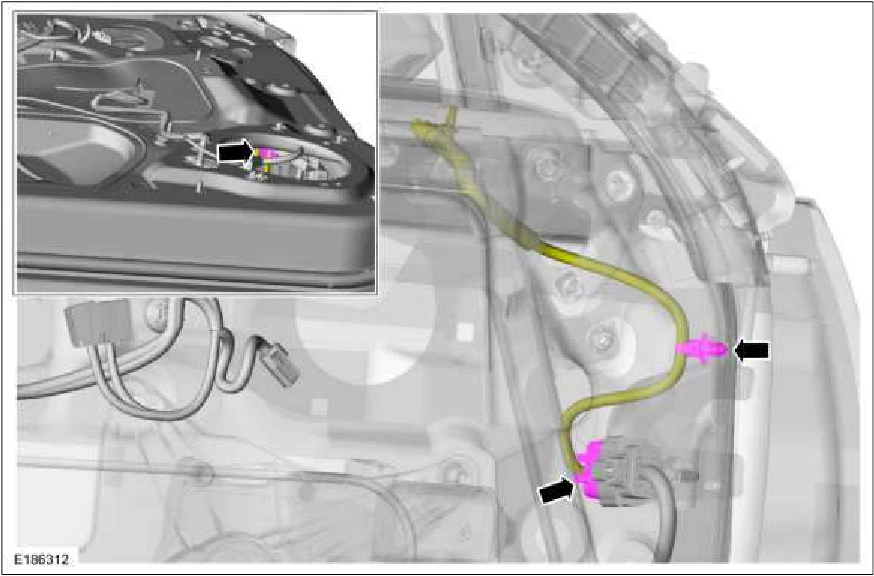

7. NOTE: The mirror wiring is accessed through the lower speaker port.

Disconnect the mirror electrical and separate the wiring harness guide.

Exterior Mirror — original illustration 1, reference 958Original colors & callouts · Select to enlarge

8. NOTE: Reconnect the window switch.

Operate door glass to the full down position.

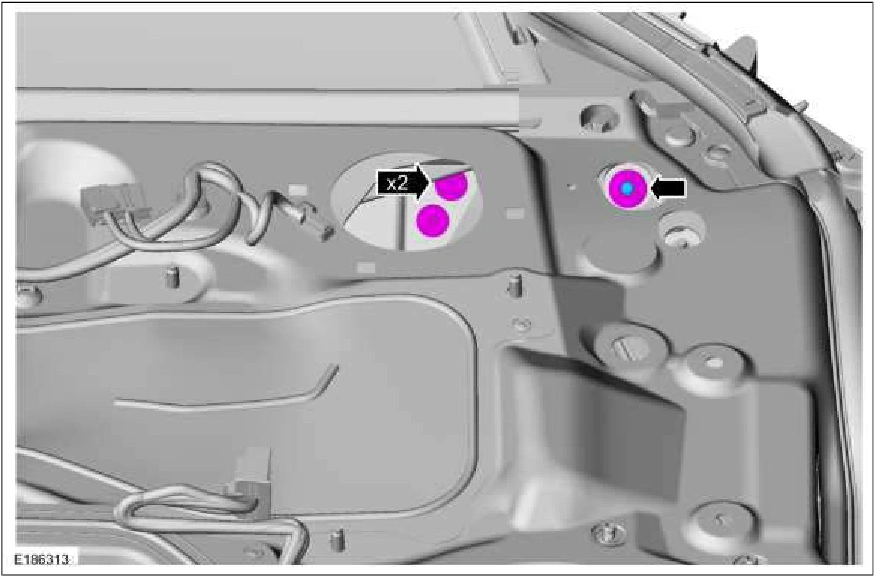

9. NOTICE: Support the exterior mirror during fastener removal to prevent damage to the mirror or

door surface.

Remove the exterior mirror mounting nut and bolts.

Exterior Mirror — original illustration 2, reference 958Original colors & callouts · Select to enlarge

10. Remove the exterior mirror.
