Exterior Mirror — 2016 workshop reference 960

Exterior Mirror — original illustration 1, reference 960Original colors & callouts · Select to enlarge

Mirror Motor

13. Remove the mirror glass.

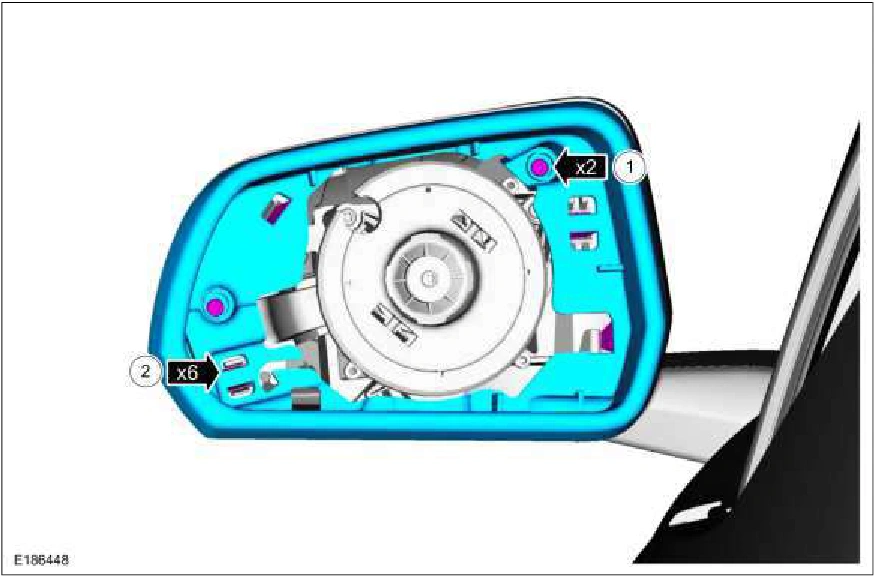

14. Remove the mirror bezel.

1. Remove the screws.

2. Release the tabs.

Exterior Mirror — original illustration 2, reference 960Original colors & callouts · Select to enlarge

15. Remove the screws and position the motor aside.

Source reference 960
