Interior Rear View Mirror — 2016 workshop reference 972

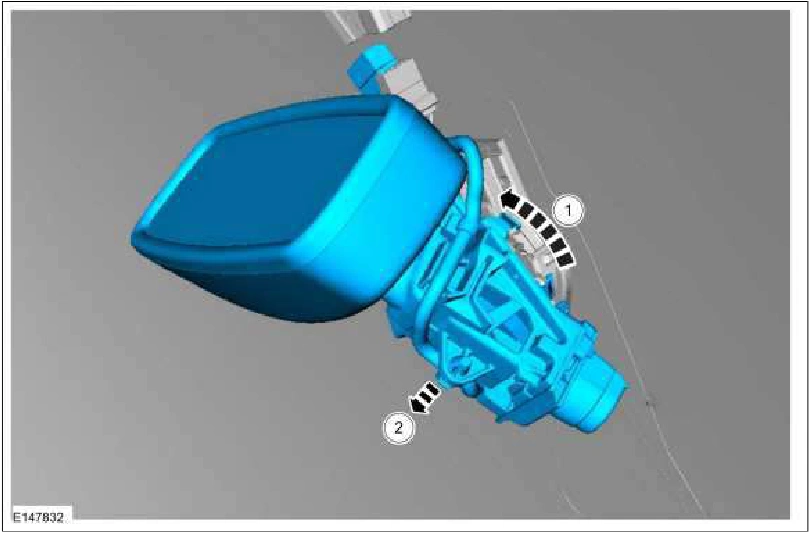

Interior Rear View Mirror — original illustration 1, reference 972Original colors & callouts · Select to enlarge

Mirror type 5

16. Remove the interior mirror.

1. Release the locking tab.

2. Slide the interior mirror off the mirror mount.

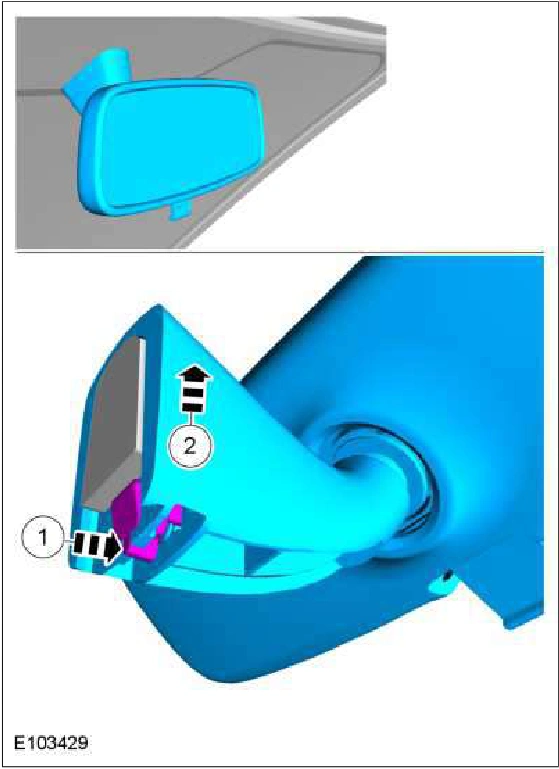

Interior Rear View Mirror — original illustration 2, reference 972Original colors & callouts · Select to enlarge

Mirror type 6

Source reference 972

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
