CONNECTOR VIEWS > CONNECTOR END VIEW C100 - AIR CONDITIONING (A/C)

CLUTCH AND AIR CONDITIONING (A/C) CLUTCH FIELD COIL

Connector:C100

Description

AIR CONDITIONING (A/C) CLUTCH AND AIR CONDITIONING (A/C) CLUTCH FIELD COIL

Color

BK

Harness

14B060

Base Part #

part# N/A

Service Pigtail

See Below

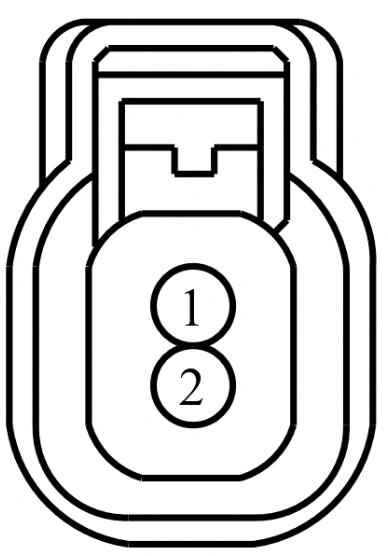

Connector End View C100 - Air Conditioning (A/C) Clutch And Air Conditioning (A/C) Clutch Field Coil — original illustration 1, reference 3692Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
