Connector End View C101 - Crankshaft Position (Ckp) Sensor — OEM Connector End Views · Reference 3695

part# N/A

Service Pigtail

See Below

Connector End View C101 - Crankshaft Position (Ckp) Sensor — original illustration 1, reference 3695Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	LE423 (GN-VT) 20		CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)
2	VE711 (YE-VT) 20		SENSOR - CRANKSHAFT POSITION (CKP)
3	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number 8U2Z-14S411-ZB

WPT-990 Gauge:

14

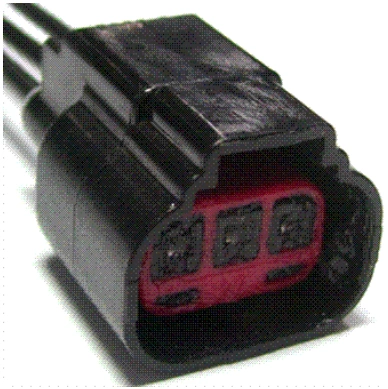

Connector End View C101 - Crankshaft Position (Ckp) Sensor — original illustration 2, reference 3695Original colors & callouts · Select to enlarge

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

Sensor - Fuel Tank Pressure Transducer
