Color
Harness
14B060
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

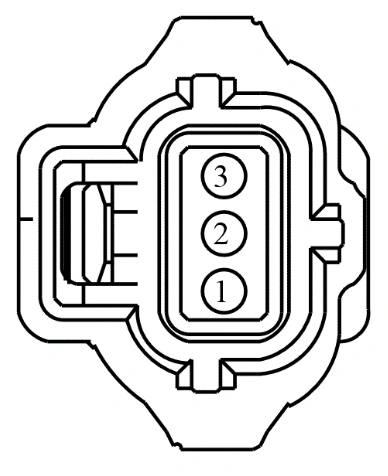

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CDC15 (VT) | 20 | GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) | |
2 | CDC10 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) | |
3 | SBB36 (GN-RD) | 20 | FUSE - 36 OR CIRCUIT BREAKER |
Available Pigtail Kits
