Connector End View C107 - Cylinder Head Temperature (Cht) Sensor 2 — OEM Connector End Views · Reference 3700

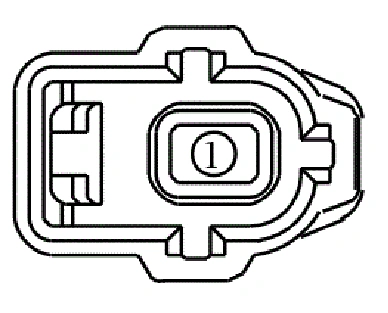

Connector End View C107 - Cylinder Head Temperature (Cht) Sensor 2 — original illustration 1, reference 3700Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CMC24 (GY)	18	SWITCH - OIL PRESSURE

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-MHA

WPT-439

Gauge:

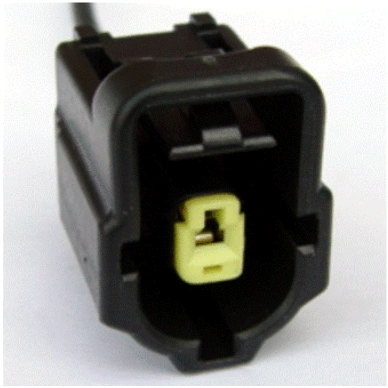

Connector End View C107 - Cylinder Head Temperature (Cht) Sensor 2 — original illustration 2, reference 3700Original colors & callouts · Select to enlarge

14

Pin material:

Tin

Cavities:

1

Vehicle Uses

Sensor - Oil Pressure

Switch - Oil Sending Unit

CONNECTOR VIEWS > CONNECTOR END VIEW C107 - CYLINDER HEAD

TEMPERATURE (CHT) SENSOR 2

Connector:C107

Ford_Mustang_all_2015-2017.pdf · source reference 3700

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
