Connector End View C108 - Knock Sensor (Ks) — OEM Connector End Views · Reference 3702

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

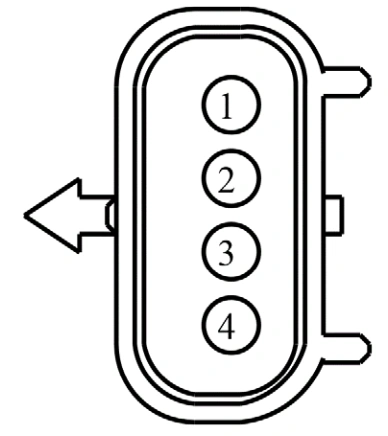

Connector End View C108 - Knock Sensor (Ks) — original illustration 1, reference 3702Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+)
2	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-)
3	VE802 (BN-BU)	18	SENSOR - KNOCK 2ND BANK 1ST (KS2+)
4	RE324 (BN-GN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2-)

Ford_Mustang_all_2015-2017.pdf · source reference 3702
