Connector End View C108 - Knock Sensor (Ks) — OEM Connector End Views · Reference 3701

Description

CYLINDER HEAD TEMPERATURE (CHT) SENSOR 2

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

Not Available

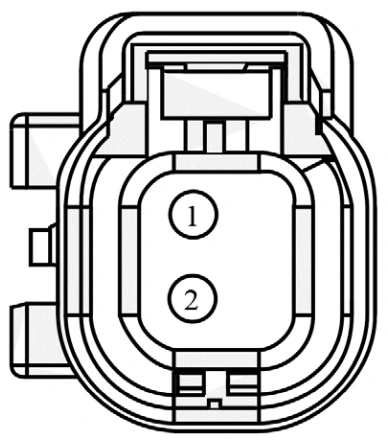

Connector End View C108 - Knock Sensor (Ks) — original illustration 1, reference 3701Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE712 (BU-GY) 20		SENSOR - CYLINDER HEAD TEMPERATURE (CHT)
2	RE454 (YE-GN) 20		CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2

CONNECTOR VIEWS > CONNECTOR END VIEW C108 - KNOCK SENSOR (KS)

Connector:C108

Description

KNOCK SENSOR (KS)

Ford_Mustang_all_2015-2017.pdf · source reference 3701
