Connector End View C110 - Inline

OEM Connector End Views

Source configuration appliesSource reference 3,703HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1220 BU2Z-14S411-AXA

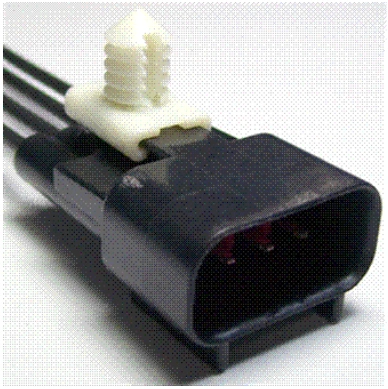

Connector End View C110 - Inline — original illustration 1, reference 3703Original colors & callouts · Select to enlarge

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses

Sensor - Knock

CONNECTOR VIEWS > CONNECTOR END VIEW C110 - INLINE

InlineC110

Description

INLINE

Color

Base Part #

Service Pigtail

See Below

MALE

Harness 12C508

FEMALE

Harness 14B485

Ford_Mustang_all_2015-2017.pdf · source reference 3703

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
