CONNECTOR VIEWS > CONNECTOR END VIEW C102C - GENERATOR
Connector:C102C
Description
GENERATOR
Color
Harness
14B060
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBF01 (RD) | 4 | FUSE - 1 (PREFERRED FOR STARTER) |

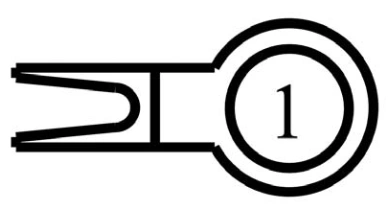

CONNECTOR VIEWS > CONNECTOR END VIEW C102D - GENERATOR
Connector:C102D
Description
GENERATOR
Color
Harness
