Connector End View C103 - Engine Oil Pressure Switch

OEM Connector End Views

Source configuration appliesSource reference 3,699HTML edition

← Chapter contents Manual collection

14B060

Base Part #

part# N/A

Service Pigtail

Not Available

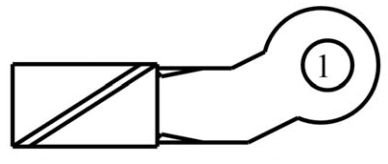

Connector End View C103 - Engine Oil Pressure Switch — original illustration 1, reference 3699Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBF01 (RD)	4	FUSE - 1 (PREFERRED FOR STARTER)

CONNECTOR VIEWS > CONNECTOR END VIEW C103 - ENGINE OIL PRESSURE

SWITCH

Connector:C103

Description

ENGINE OIL PRESSURE SWITCH

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 3699

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
