Connector End View C100 - Air Conditioning (A/C) Clutch And Air Conditioning (A/C) Clutch Field Coil — OEM Connector End Views · Reference 3693

1	CH401 (VT-WH)	20	RELAY - A/C CLUTCH
2	GD123 (BK-GY)	18	GROUND - FENDER FRONT RIGHT

Available Pigtail Kits

Service Part Number:

3U2Z-14S411-BXAB

Gauge:

16

Pin material:

Silver

Cavities:

Pigtail Kit Part Number

2 WPT-984

Vehicle Uses

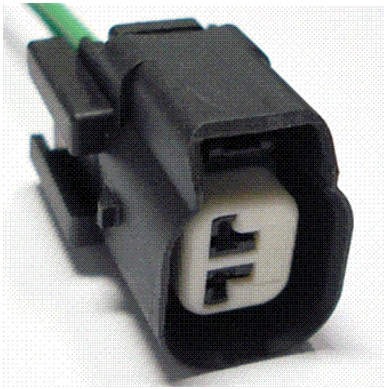

Connector End View C100 - Air Conditioning (A/C) Clutch And Air Conditioning (A/C) Clutch Field Coil — original illustration 1, reference 3693Original colors & callouts · Select to enlarge
