Check for Terminal Part Numbers

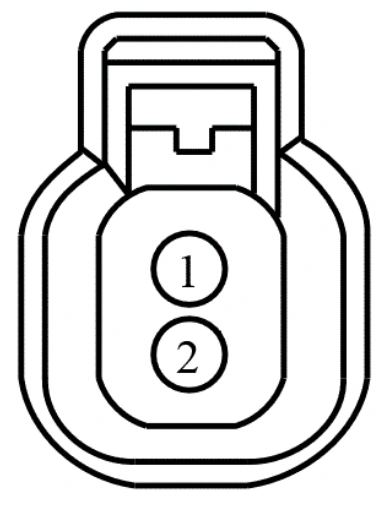

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE206 (GY-YE) | 20 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + | |
2 | CBK01 (BU) | 20 | FUSE - 41 OR CIRCUIT BREAKER (VPWR F) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1051 | Service Part Number: 5U2Z-14S411-ZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses |
