Connector End View C181 - Fuel Injector 1

OEM Connector End Views

Source configuration appliesSource reference 3,765HTML edition
← Chapter contentsManual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C181 - FUEL INJECTOR 1

Connector:C181

Description

FUEL INJECTOR 1

Color

GY

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

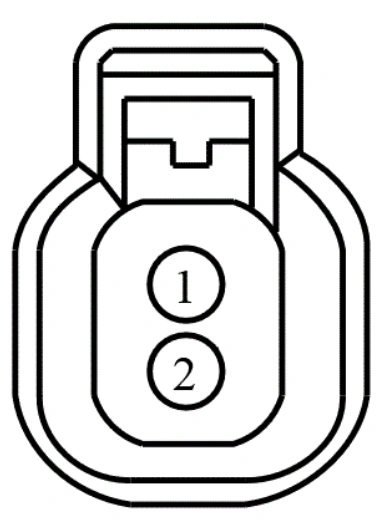

Connector End View C181 - Fuel Injector 1 — original illustration 1, reference 3765Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CE205 (GN-BU)

20

CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +

Ford_Mustang_all_2015-2017.pdf · source reference 3765

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
