Connector End View C182 - Fuel Injector 2

OEM Connector End Views

Source configuration appliesSource reference 3,766HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Service Part Number:

5U2Z-14S411-ZB

Pigtail Kit Part Number

Gauge:

WPT-1051

16

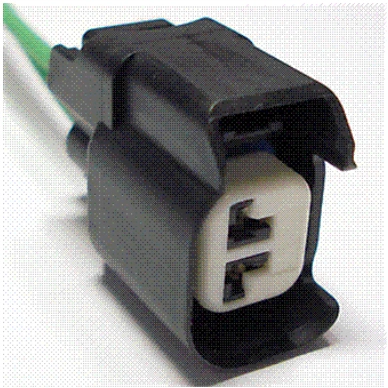

Connector End View C182 - Fuel Injector 2 — original illustration 1, reference 3766Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

2

Vehicle Uses

Fuel Injector

Horn

Switch - Backup Lamp

Switch - Hood Ajar

CONNECTOR VIEWS > CONNECTOR END VIEW C182 - FUEL INJECTOR 2

Connector:C182

Description

FUEL INJECTOR 2

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below
